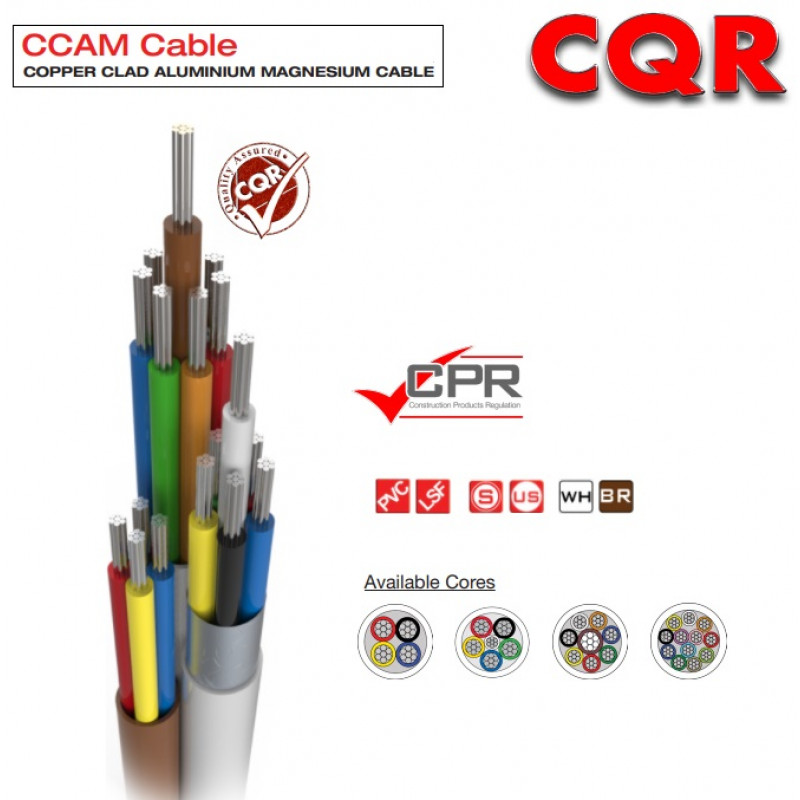

CQR (CABCCAS12/WH/100M) 12 Core Screen White Type3 TinStrand CCA UK 100m Reel
- Brand:CQR
- Product Code:CABCCAS12/WH/100M
- Availability:Please Call or Email Us to Check Availability
CQR (CABCCAS12/WH/100M) 12 Core Screen White Type3 TinStrand CCA UK 100m Reel
Application:
Suitable for domestic applications and shorter runs.
Construction:
7×0.2mm2 Copper Clad Aluminium sheathed in standard PVC. CCA cable can be screened or unscreened.
Available in 2, 4, 6, 8, or 12 core with a white or brown sheath.
Coloured rip cord for identification of BS4737-3.30:2015 type.
Approvals:
All CQR cables are certified and tested to EN50575:2014 – CPR 305/2011.
CCA cable conforms to BS4737-3.30:2015 and is Type 3.
Also available as a
Low Smoke & Fume
Other cable lengths available on request.
Technical Specifications:
| Core: | 7 x 0.2mm2 | |
| Resistance: | 147.9 Ohms/Km | |
| AWG: | 24 | |
| Current: | 1 Amp | |
| Max Voltage: | 50V | |
| Operating Temp: | 70oC | |
| Screened | ||
| Screening: | Aluminium / Pet Foil | |
| Drain Wire: | Soft Tinned Copper | |
| Sheathing | ||
| Standard Cable | Sheath – PVC | Cores – PVC |
| Low Smoke & Fume | Sheath – LSF | Cores – PVC |
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
