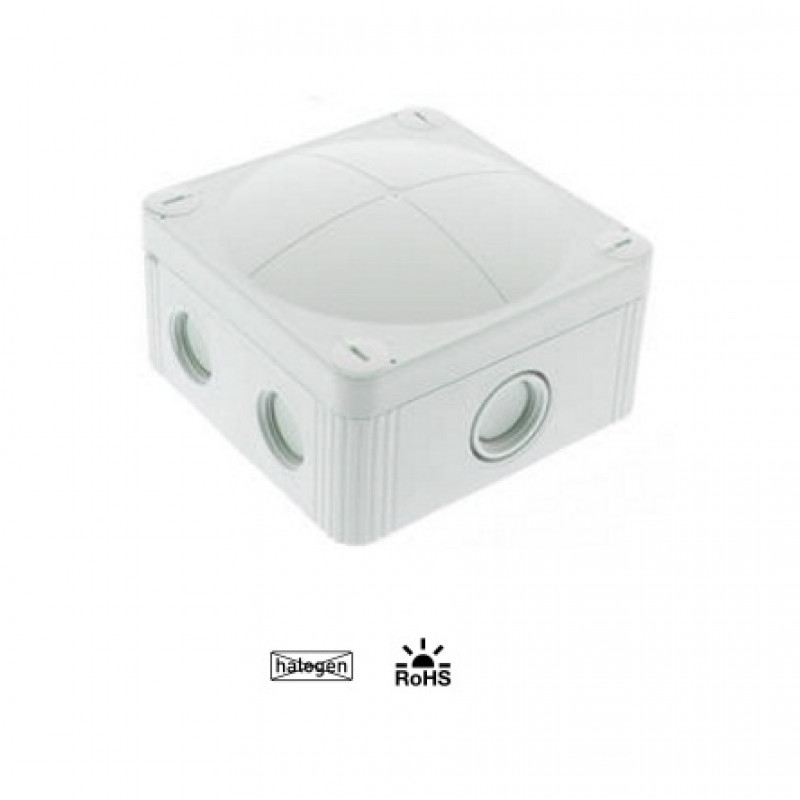

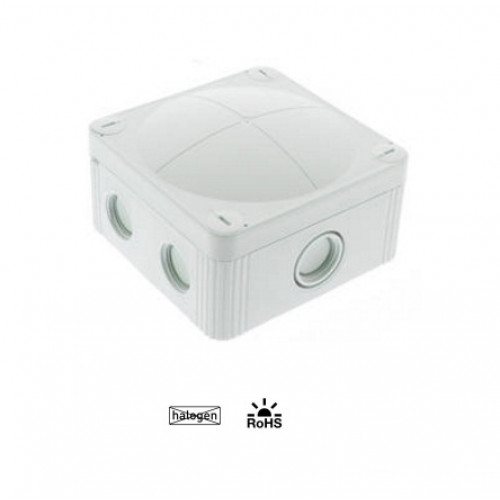

105598, White COMBI 407/empty IP66/67/W Junction Box (95x95x60)
- Brand:Wiska
- Product Code:105598
- Availability:Please Call or Email Us to Check Availability
105598, White COMBI 407/empty IP66/67/W Junction Box (95x95x60)
The COMBI series by WISKA offers outstanding properties and a comprehensive range of accessories for the widest range of applications. COMBI junction boxes are used in commercial, industrial and domestic applications, such as railway, shipping and offshore industries.
Features:
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66/67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Terminals/poles | 4 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 95 x 95 x 60mm |
| Type of cable gland | M 20 x 1,5, M 25 x 1,5 |
| Using for cable gland |  |
| Product Color | RAL 9001 |
| WISKA-Order no. | 10105598 |
| Type | COMBI 407/empty/W |
| Packing unit | 5 |
| ETIM-Classification | EC002600 |
| Remarks: IP66: using the membrane entry IP67: using the threaded entry together with ESKV cable gland Fixing: With mounting clip or 4 internal openings outside of the sealing area Equipment: - 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25 - 2 membrane cable entries through rear - 4 captive cover screws - including mounting clip |
|
For more details, please find the attached datasheet.
