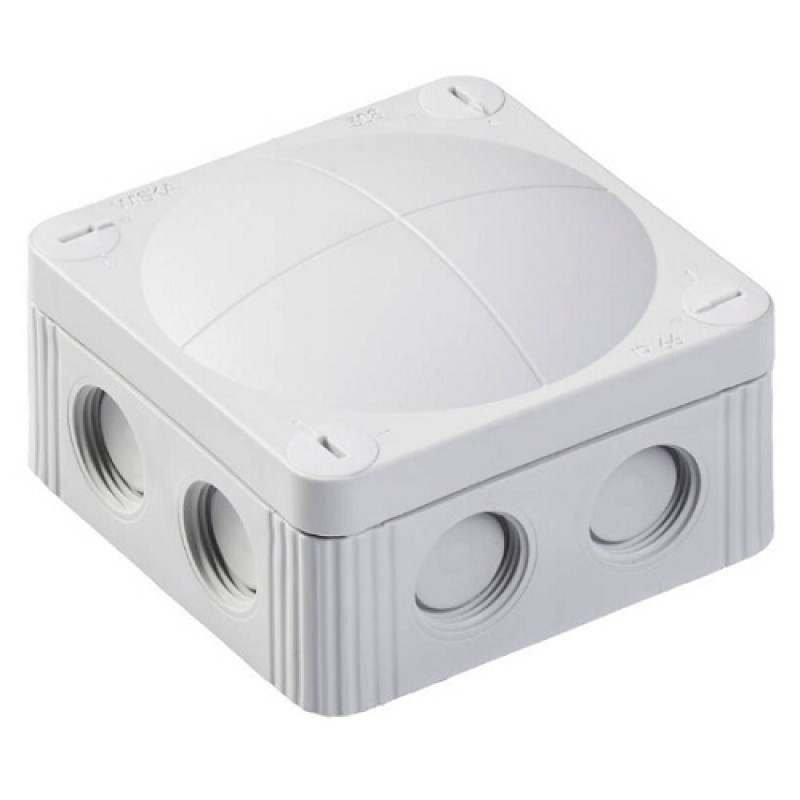

60401, COMBI 308/5 Grey Junction Box (85x85x51mm)
- Brand:Wiska
- Product Code:60401
- Availability:Please Call or Email Us to Check Availability
60401, COMBI 308/5 Grey Junction Box (85x85x51mm)
The COMBI series by WISKA offers outstanding properties and a comprehensive range of accessories for the widest range of applications. COMBI junction boxes are used in commercial, industrial and domestic applications, such as railway, shipping and offshore industries.
Key Features:
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated current / A (Terminal) | 32 A |
| Terminals/poles | 4 mm² |
| Terminals/poles | 5 x 4mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 85 x 85 x 51mm |
| Type of cable gland | M 20 x 1,5 |
| Using for cable gland |  |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10060401 |
| Type | COMBI® 308/5 |
| Packing unit | 5 |
| ETIM-Classification | EC002600 |
For more details, please refer with our attached datasheet.
