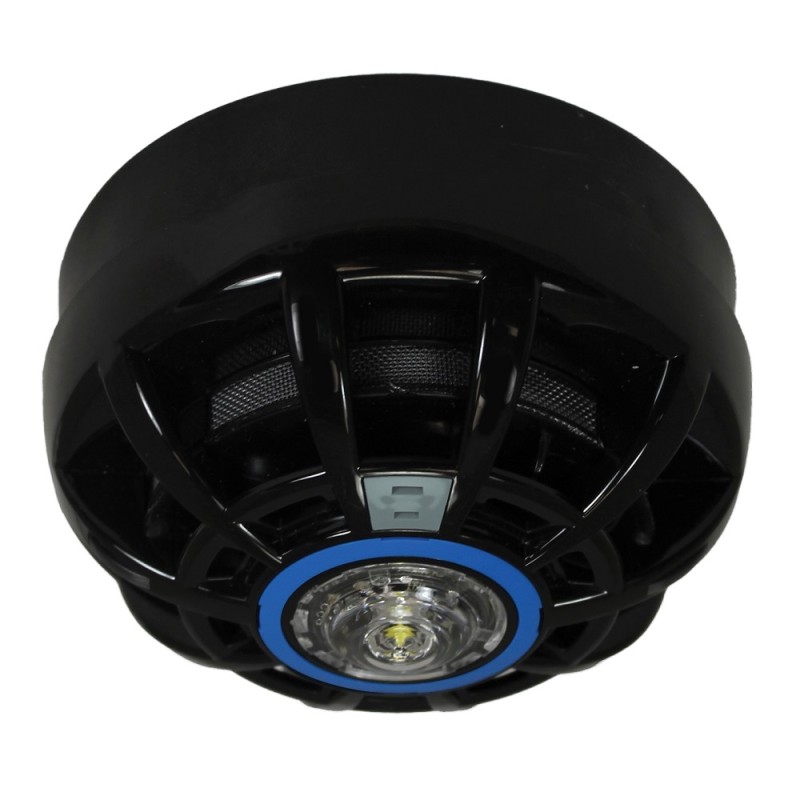

C-TEC (CP414BTV), CAST-PRO Black Smoke + Heat Multisensor c/w Tone Sounder & C-3-9.4 White VAD
- Brand:C Tec
- Product Code:CP414BTV
- Availability:Please Call or Email Us to Check Availability
C-Tec (CP414BTV) CAST-PRO Black Smoke + Heat Multisensor c/w Tone Sounder & C-3-9.4 White VAD
- Multiple functionality in a single device – smoke & heat multisensor fire detection plus a 92db(A) tone Alarm sounder and a C-3-9.4 VAD in a black housing – detects real fires quickly, reduces false alarms effectively and indicates true alarm conditions decisively.
- Certified to EN54-3, 5, 7, 17, 23 & 29 by Kiwa Telefication and to EN54-13 by DBI.
- Compatible with C-TEC’s ZFP and XFP CAST protocol addressable fire panels.
- MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions.
- Drift compensation functionality.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Multiple detection modes and different sensitivities for different times of the day.
- 13.2mA max. alarm current (max vol, VAD on).
- 590uA typical quiescent current @ 40V DC.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
‘CAST’ is the world’s most-advanced ‘distributed intelligence’ fire alarm system protocol. Conceived, designed and realised by C-TEC, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels & field devices. Its key features include:-
- 255 devices per loop.
- Autonomous decision-making for faster response times.
- Multiple type codes.
- 40V loop drive voltage.
- Two ‘soft’ addressing options – automatic via the panel or manual via a powerful handheld programmer.
- Powerful multi-level addressing facilitates easy device addition and swapped device identification.
- Multiple functionality at a single address (integrated devices) via our CAST-PRO devices.
- Volumes, tones & detector modes can be changed at compatible panels.
- High-speed data transmission and robust data transfer.
- Intrinsically EN54-13 compliant.
- Geographical location of short and open circuit faults (a short circuit isolator is included as standard in every CAST field device).
- Replace device function.
- Future seamless integration with other CAST life safety systems reducing energy, servicing, installation and repair costs.
- Designed and manufactured in the UK.
Technical Specifications:
Approvals/certifications: Certified to EN54-13 by Kiwa Telefication & DBI, CPR number 0063-CPR-242190011, Kiwa Telefication certified to EN54-3, 5, 7, 17, 23 & 29
Compatibility: Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels.
Type: Heat & Smoke Fire Detection plus Tone Alarm & White VAD
Sensitivity: 8 Detection Modes (default for this device is Mode 7).
Supply wiring: 2-wire, polarity sensitive.
Supply/operating voltage: 28 to 40V DC.
Quiescent current: 590uA @ 40V.
Alarm current (Imax at Vmin): 13.2mA (max volume, VAD lit).
Alarm current (Iavg at Vmin): 10.8mA (max volume, VAD lit).
Sound pressure level (LAFmax) at Vmax at 1m: 92dB(A).
VAD category & coverage: C-3-9.4 (10m2/mA efficiency; 0.5Hz Synchronised).
Indicators: 2 LED indicator strips emitting red light when in alarm offering 360º visibility. Optional remote LED.
Connections: Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen.
Product dimensions (mm): 105mm diameter x 51mm deep (detector only); 105mm diameter x 68mm deep (detector in base).
IP Rating: IP21C
Weight: 130g (not in base); 185g (in base)
Operating conditions/temperature: -10ºC to +50ºC. Max relative humidity: 95% (non-condensing)
Notes: Requires a CA408 CAST base. CA408R relay base also available.
