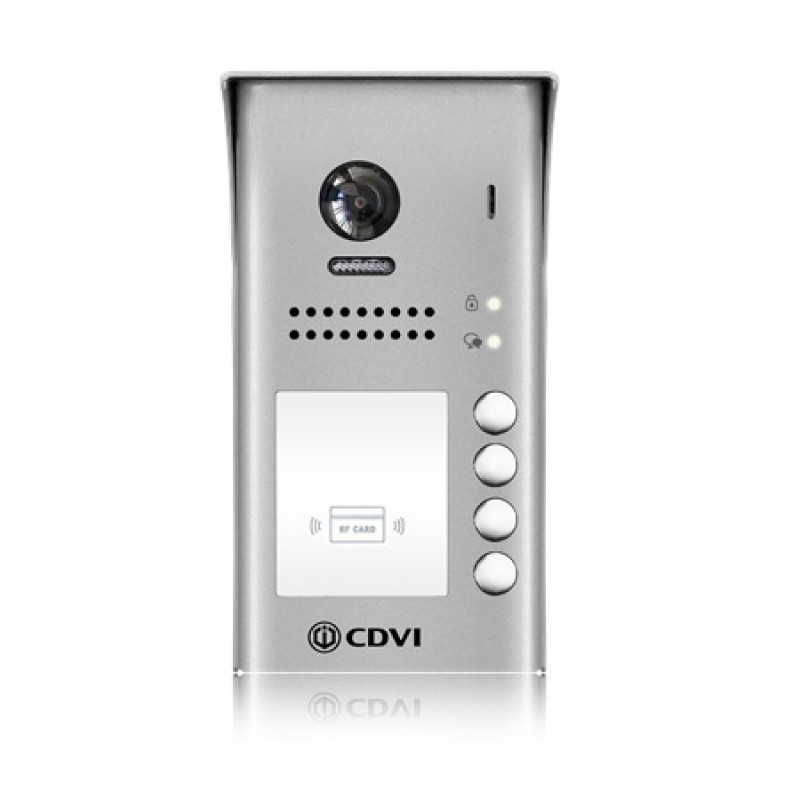

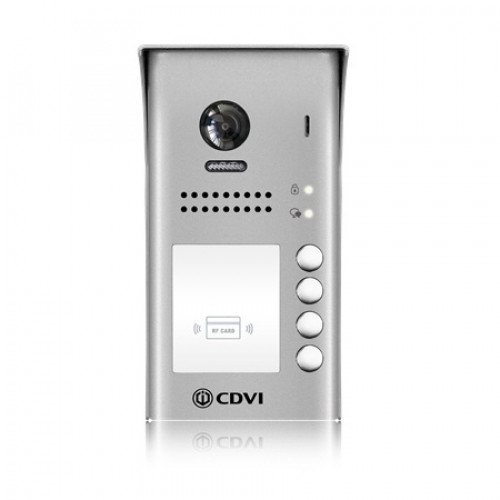

CDV97-4ID, 4 Button Video Door Entrance Station, Surface Low Profile
- Brand:CDVI
- Product Code:CDV-974ID
- Availability:Please Call or Email Us to Check Availability
CDV97-4ID, 4 Button Video Door Entrance Station, Surface Low Profile - Integral Proximity Reader
The CDV97 range of Door Stations features a colour 2 mega pixel CMOS camera with a 170 degree viewing angle with digital pan, tilt and zoom.
The CDV97 range also includes a built in proximity reader programmable to operate internally via the internal lock relay or externally via CDV-ACC BUS/Wiegand interface allowing direct connection to a standard wiegand reader input port. The CDV97 is also available in 1, 2 and 8 button variants.
The modern low profile styling suits all environments and is compatible with all of the 2Easy range.
Key Features:
- 170º Colour Camera
- Integral proximity reader
- Low profile surface mount
- 2-wire configuration
- Reader interface available for ATRIUM connection using CDV-ACC/S (up to 4 door stations)
Specifications:
- Material: Zinc alloy construction
- IP Rating: IP54
- Power supply: 24Vdc
- Power Consumption: standby 0.8W, working 3W
- Lock Power Supply: 12Vdc, 280mA (Internal power - Fail secure only)
- Dimensions: 176 x 90 x 27mm
For more details, please refer with our attached datasheet.
