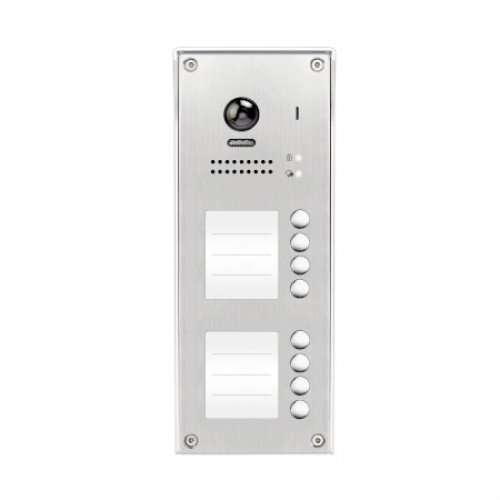

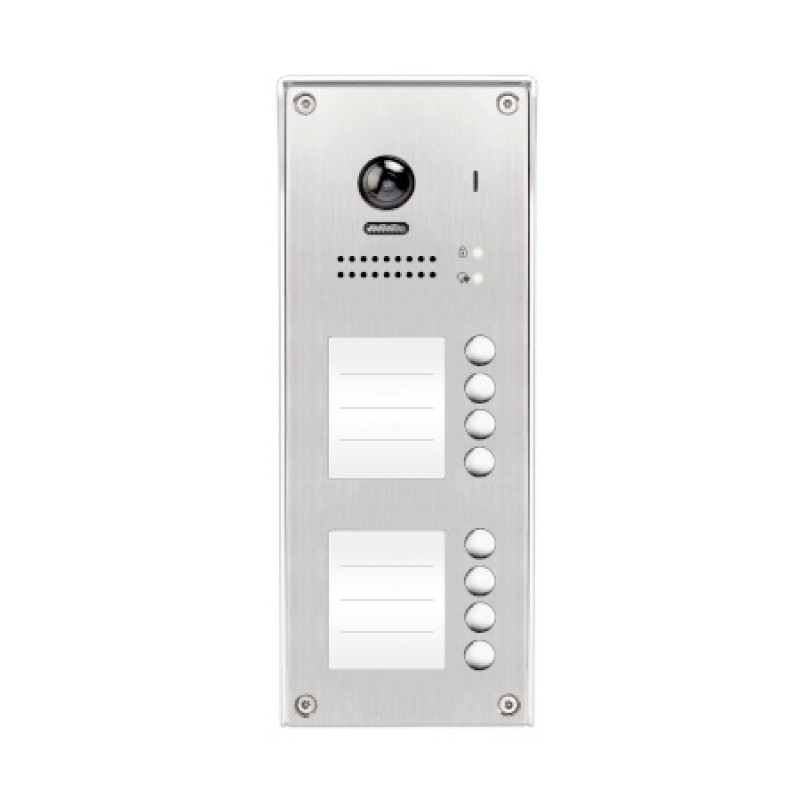

CDV97-8ID, 8 Button Video Door Entrance Station, Surface Low Profile

CDV97-8ID, 8 Button Video Door Entrance Station, Surface Low Profile

  • Brand:CDVI
  • Product Code:CDV-978ID
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


CDV97-8ID, 8 Button Video Door Entrance Station, Surface Low Profile - Integral Proximity Reader

The CDV97 range of Door Stations features a colour 2 mega pixel CMOS camera with a 170 degree viewing angle with digital pan, tilt and zoom.

The CDV97 range also includes a built in proximity reader programmable to operate internally via the internal lock relay or externally via CDV-ACC BUS/Wiegand interface allowing direct connection to a standard wiegand reader input port. The CDV97 is also available in 1, 2 and 4 button variants.

The modern low profile styling suits all environments and is compatible with all of the 2Easy range.

Key Features:

  • 170º Colour Camera
  • Integral proximity reader
  • Low profile surface mount
  • 2-wire configuration
  • Reader interface available for ATRIUM connection using CDV-ACC/S (up to 4 door stations)

Specifications:

  • Material: Stainless steel
  • IP Rating: IP45
  • Power supply: 24Vdc
  • Power Consumption: standby 0.8W, working 3W
  • Lock Power Supply: 12Vdc, 250mA (Internal power - Fail secure only)
  • Dimensions: 280 x 110 x 44mm

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
