IS (IS M12) 12v (2Amp) Mini Double-Pole Polarised Relay - Single Unit

IS (IS M12) 12v (2Amp) Mini Double-Pole Polarised Relay - Single Unit

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

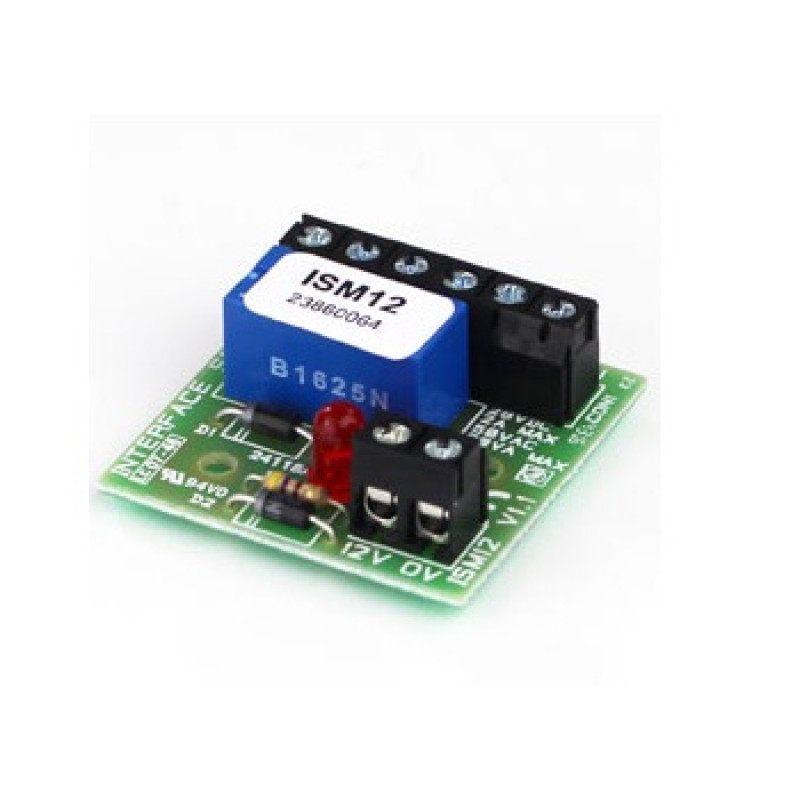

IS (IS M12) 12v (2Amp) Mini Double-Pole Polarised Relay - Single Unit

This is the miniature version of the IS 12.

The 12 volt polarised double pole relay is a simple to fit module wherever a dry contact, voltage free switching is required. It is ideal for low current low voltage switching i.e. CCTV systems, industrial control systems and many other applications. The double pole relay is rated at 2 Amps complete with LED indication. It is supplied as an individual unit or in a strip of 4 modules.

We recommend IS Sticky Feet Size A, self-adhesive mounting pillars to ensure a neat fixing.

Specifications:

  • Supply Voltage: 12 Volts DC
  • Coil Resistance: 285 Ohms
  • Nominal Current: 60 mAmps
  • Double Pole Relay Rated At: 2 Amps at 30 V DC minimum 10 mA
  • Dimensions: Single: 37m (W) 37mm (L) 16mm (H)
