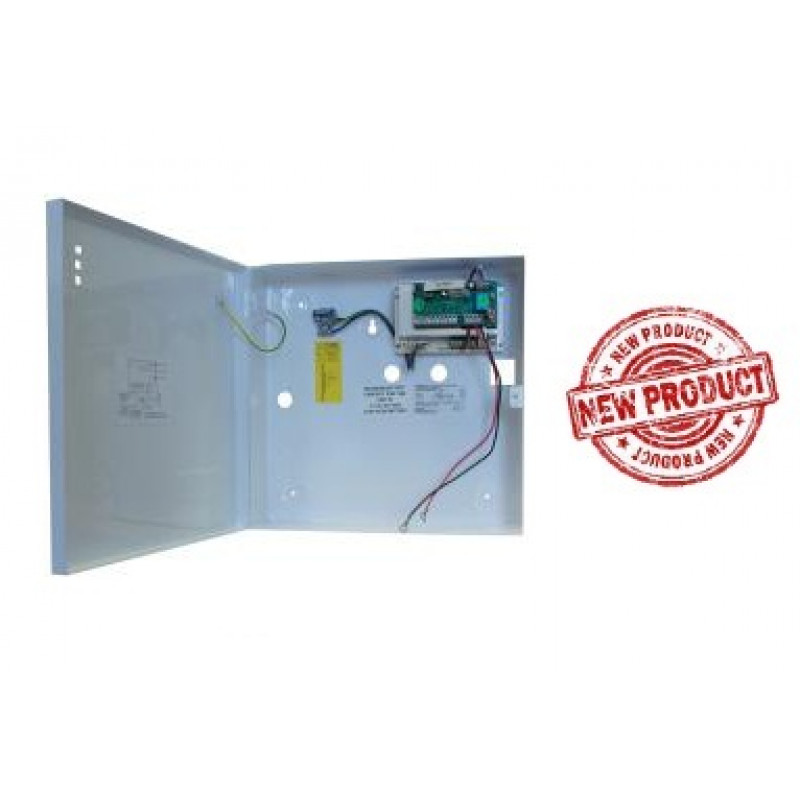

RGL 1201SM-2MP, 13.8vdc - 1 Amp Power Supply - Large Housing (310h x 340w x 80d)
- Brand:RGL
- Product Code:1201SM-2MP
- Availability:Please Call or Email Us to Check Availability
RGL 1201SM-2MP, 13.8vdc - 1 Amp Power Supply - Large Housing (310h x 340w x 80d)
A 13.8vdc power supply in a large housing 310h x 340w x 80d (mm) with multi indicator.Includes Mains, Battery & PSU monitoring via voltage free outputs, Designed to house up to 2 x 9 Ah battery. Load excludes battery charging of 300mA - Includes Deep Discharge Protection.
Key Features:
- 13.8 Volt DC Regulated output switchmode. Full current to stated load
- Battery current limiting circuit
- Over-discharge protection
- Mains transient protection
- Current limiting protection
- Short circuit protection
- Over voltage protection
- LED Diagnostics
- Maximum Battery capacity up to
- 2 x 9Ah only.
- Mild steel construction
- White powder coated finish
- Hinged style box
- Wiring Instructions inside product
- More efficient and environmentally friendly
- Top, bottom and Rear cable entry
- Front Tamper
Voltage free terminals for:
- Mains Fail
- Battery Missing/Weak
- Power Output Fault
Dimensions
- Size: 340x310x80 (mm)
For more details, please refer with our attached datasheet.
