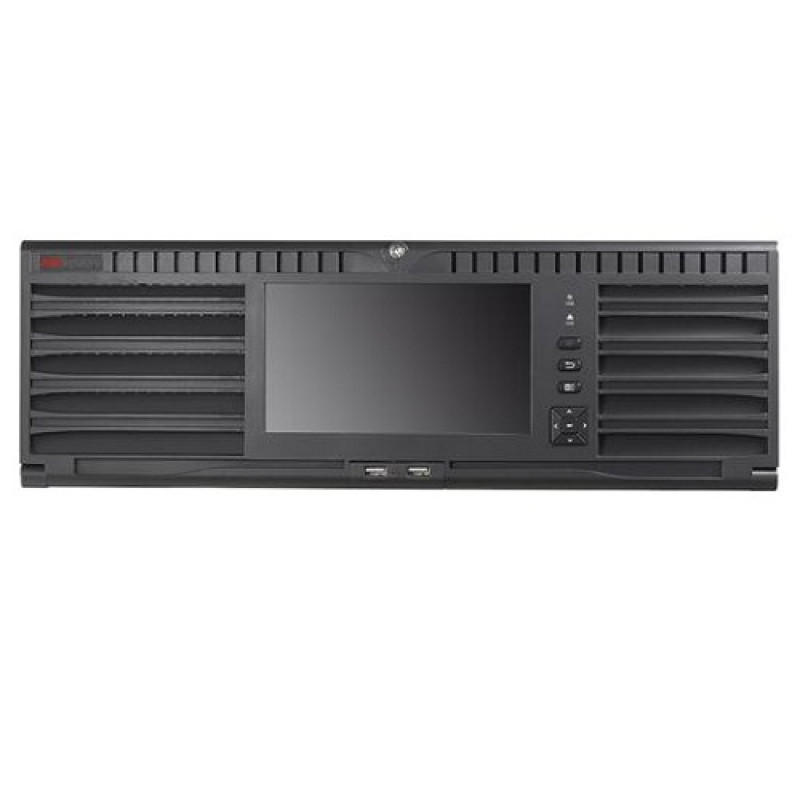

Hikvision, DS-96128NI-I16, 128 Channel Super 4K NVR 3U 19" Case
- Brand:Hikvision
- Product Code:DS-96128NI-I16
- Availability:Please Call or Email Us to Check Availability
Hikvision, DS-96128NI-I16, 128 Channel Super 4K NVR 3U 19" Case
Key Features:
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Video outputs at up to 4K (4096*2160) resolution
- Supports decoding up to 20 channels at 1080P resolution
- Up to 128/256 IP cameras can be connected with
- 576M incoming bandwidth
- Up to 24 SATA interfaces
- Supports H.264+,H.264,MPEG4,H.265,MJPEG video format
- Support redundant power supply to improve the system stability
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
- Support various VCA detection alarm and VCA search
Technical Specifications:
| Video/Audio Input | |
|---|---|
| IP video input: | 128-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth: | 576Mbps |
| Outgoing bandwidth: | 512Mbps |
| Remote connection: | 256 |
| Video/Audio Output | |
| HDMI Output: | 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | 1-ch, RCA (2.0Vp-p, 1KΩ) |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 20-ch@1080P |
| Hard Disk | |
| SATA: | 16 SATA interfaces for 16 HDDs |
| miniSAS (Optional): | 2 miniSAS interface |
| eSATA: | 1 eSATA interface |
| Capacity: | Up to 8TB capacity for each HDD |
| Disk array | |
| Array type: | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Number of array: | 8 |
| External Interface | |
| Optic fiber interface: | 4 1000 Mbps optional optic fiber interfaces |
| Network Interface: | 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces |
| Serial Interface: | RS-232, RS-485, Keyboard |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 2 × USB 3.0 |
| Alarm In: | 16-ch |
| Alarm Out: | 4-ch |
| General | |
| Power Supply: | 100-240 VAC, 550W |
| Consumption(without hard disk and POE): | ≤ 140W |
| Working Temperature: | 0 ºC ~ +50 ºC (32ºF ~ 122ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 3U chassis |
| Dimensions: | 442 × 494 146 mm (17.4 × 19.4 5.7 inch) |
For more details, please refer with our attached datasheet.
