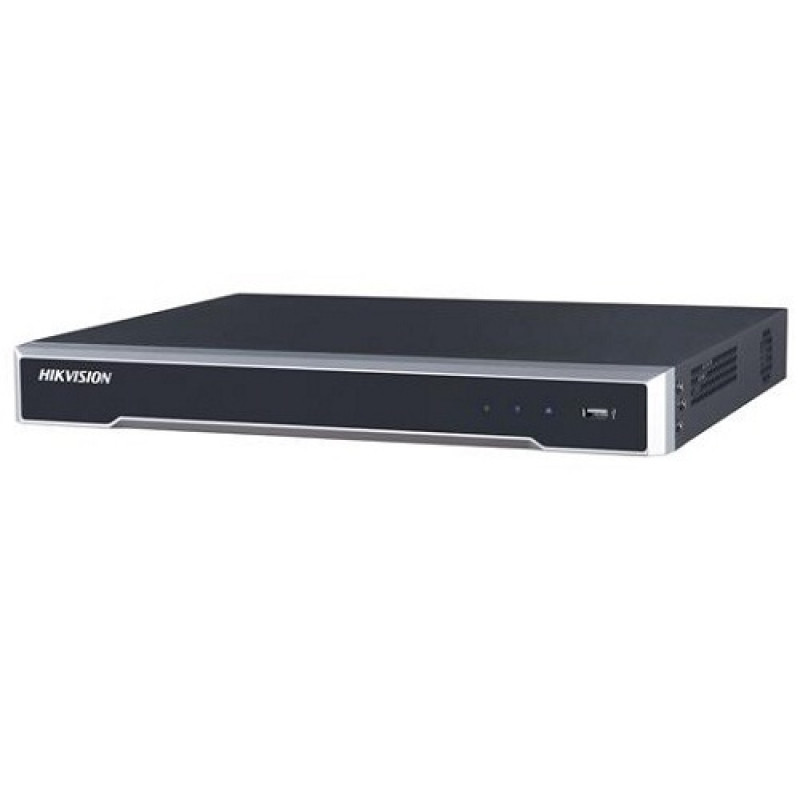

DS-7616NI-K2/16P/3TB, 16 Channel Embedded Plug/Play 4K NVR - 3TB

DS-7616NI-K2/16P/3TB, 16 Channel Embedded Plug/Play 4K NVR - 3TB

  • Brand:Hikvision
  • Product Code:DS-7616NI-K2/16P/3TB
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


DS-7616NI-K2/16P/3TB, 16 Channel Embedded Plug/Play 4K NVR - 3TB

16-ch IP upto 8MP, 160Mbps inbound bandwidth, 160Mbps outbound bandwidth, HDMI & VGA video out, 2 SATA interfaces, Alarm I/O: 4/1.

Key Features:

  • Third-party network cameras supported
  • Up to 8 Megapixels resolution recording
  • Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
  • 16-ch network cameras can be connected with 160M incoming bandwidth
  • Up to 2 SATA interfaces
  • Plug & Play with up to 16 independent PoE network interfaces
  • Support dual-os to ensure high reliablility of system running
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats

Technical Specifications:

Video/Audio Input
IP video input: 16-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: 160Mbps
Outgoing bandwidth: 160Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (Linear, 1kΩ)
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 8-ch@1080P
Hard Disk
SATA: 2 SATA interfaces for 2 HDDs
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 2, USB2.0
Alarm In: 4-ch
Alarm Out: 1-ch
POE
Interface: 8 independent 10 /100 Mbps PoE Ethernet interfaces
General
Power Supply: 100 to 200 VAC
Consumption(without hard disk and POE): ≤ 15 W
Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: 10 % ~ 90 %
Chassis: 385 mm chassis
Dimensions: 385 × 315× 52 mm (15.2" 12.4" 2.0")


For more details, please refer with our attached datasheet.
