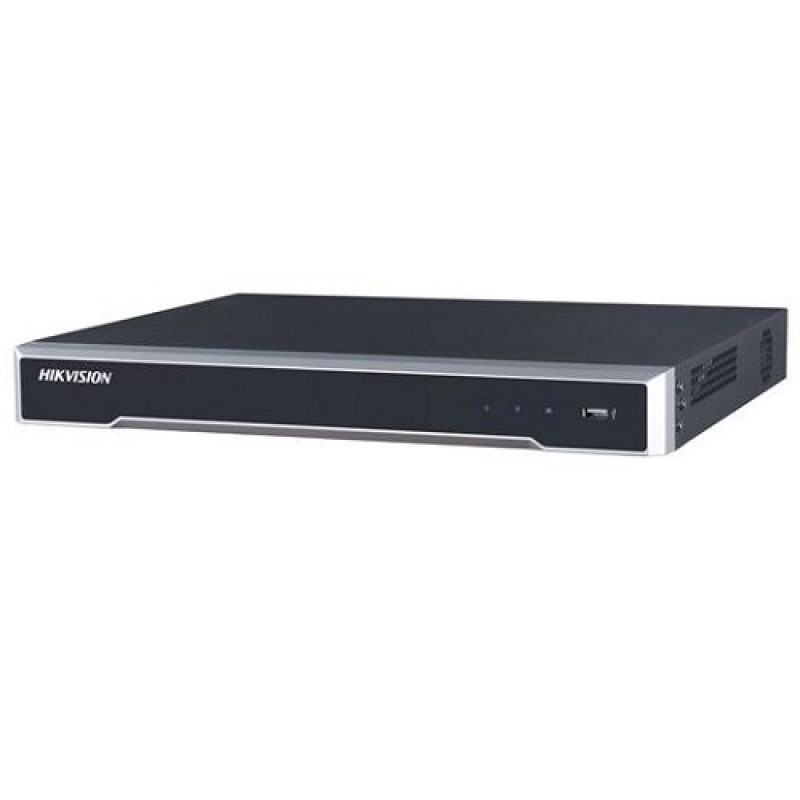

DS-7616NI-K2/16P/6TB, 16 Channel Embedded Plug/Play 4K NVR - 6TB
- Brand:Hikvision
- Product Code:DS-7616NI-K2/16P/6TB
- Availability:Please Call or Email Us to Check Availability
DS-7616NI-K2/16P/6TB, 16 Channel Embedded Plug/Play 4K NVR - 6TB
16-ch IP upto 8MP, 160Mbps inbound bandwidth, 160Mbps outbound bandwidth, HDMI & VGA video out, 2 SATA interfaces, Alarm I/O: 4/1.
Key Features:
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 16-ch network cameras can be connected with 160M incoming bandwidth
- Up to 2 SATA interfaces
- Plug & Play with up to 16 independent PoE network interfaces
- Support dual-os to ensure high reliablility of system running
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Technical Specifications:
| Video/Audio Input | |
|---|---|
| IP video input: | 16-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth: | 160Mbps |
| Outgoing bandwidth: | 160Mbps |
| Video/Audio Output | |
| HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 8-ch@1080P |
| Hard Disk | |
| SATA: | 2 SATA interfaces for 2 HDDs |
| Capacity: | Up to 6TB capacity for each HDD |
| External Interface | |
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | 2, USB2.0 |
| Alarm In: | 4-ch |
| Alarm Out: | 1-ch |
| POE | |
| Interface: | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
| General | |
| Power Supply: | 100 to 200 VAC |
| Consumption(without hard disk and POE): | ≤ 15 W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 385 mm chassis |
| Dimensions: | 385 × 315× 52 mm (15.2" 12.4" 2.0") |
For more details, please refer with our attached datasheet.
