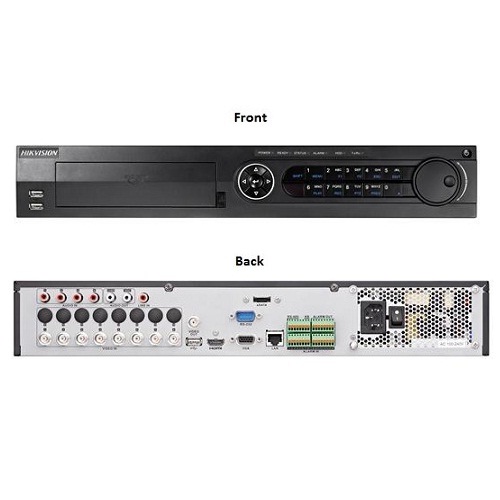

Hikvision, DS-7332HUHI-K4/16TB, 32 Channel 5MP Turbo HD 4.0 DVR - 16TB
- Brand:Hikvision
- Product Code:DS-7332HUHI-K4/16TB
- Availability:Please Call or Email Us to Check Availability
Hikvision, DS-7332HUHI-K4/16TB, 32 Channel 5MP Turbo HD 4.0 DVR - 16TB
32ch TVI / Analogue / AHD / CVI, upto 40ch IP @ 8MP, 32-ch video & 4-ch audio input, 4 SATA interfaces,
8MP @ 8fps, 5MP @ 12fps, 4MP @ 15fps, 3MP @ 18fps, 2MP @ 25fps, Alarm I/O: 16/4, 1.5U 19" case,
Optional DVD/RW, HDMI, VGA & BNC Monitor Outputs.
Key Features:
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- Up to 5MP resolution for recording
- HDMI output at up to 4K (3840 × 2160) resolution
- Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
- 16-ch synchronous playback
- Supports POS triggered recording and POS information overlay
Technical Specifications:
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.265+/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 32-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 5MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 1080p25, 1080p30, 720p25, 720p30 support CVBS input |
|
| IP Video Input: | 8-ch(up to 40ch) Up to 8MP resolution | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 | |
| HDMI2 Output: | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame Rate: | Main stream: 5 MP@12fps; 4 MP@15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Dual Stream: | Support | |
| Playback Resolution: | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 4 SATA Interfaces | |
| Capacity: | Up to 8 TB capacity for each disk | |
| e-SATA Interface: | 1 eSATA interface | |
| Disk Array | ||
|---|---|---|
| Array Type: | RAID0, RAID1, RAID5, RAID6,RAID10 | |
| External Interface | ||
|---|---|---|
| Network Interface: | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces | |
| Serial Interface: | 1 RS-232 serial interface 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface |
|
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
For more details, please refer with our attached datasheet.
