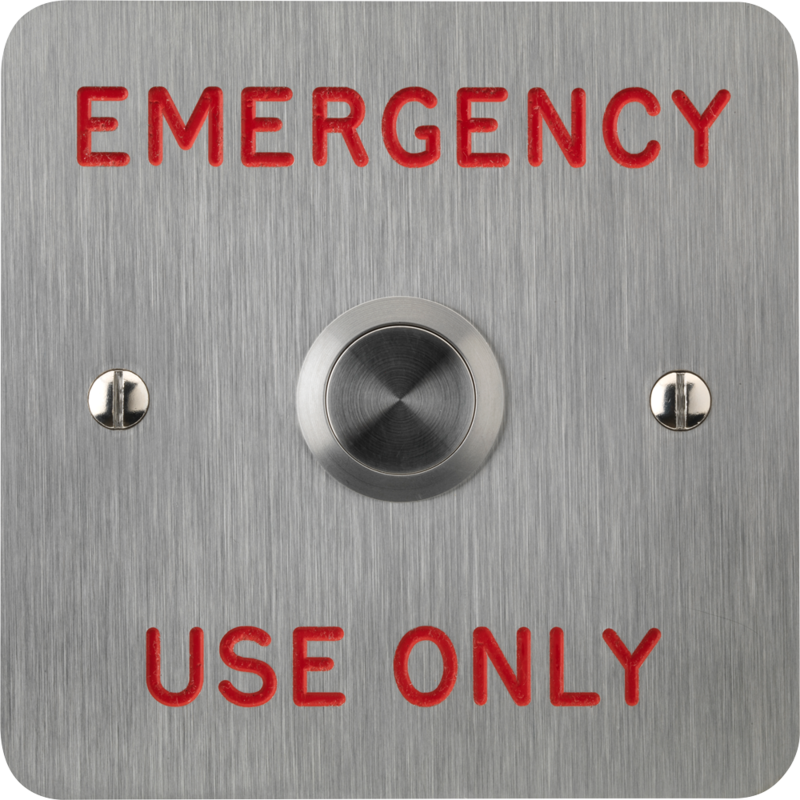

3E0658N-1-E-EUO, VANDAL RESISTANT 19mm mount 1 Gang SSS Engraved ""Emergency Use Only"" IP67 Ingress protection Momentary contact 1 x N/O, 1 x N/C, 1 x C Silver contacts
VANDAL RESISTANT BUTTON
- IP67 Ingress protection
- Momentary contact
- N/O, N/C, C
- Silver contacts
- Engraved as standard
- -25 Deg. C to +85 Deg. C operating range
- Impact rating: IK07
- Short actuation travel (0.8mm)
- 1.7mm protrusion from panel
SPECIFICATION:-
ELECTRICAL
| Life |
0.2 million actuations at Rated Switching Capacity |
| |
>100MΩ |
| Contact Resistance (initial) |
<30mΩ |
| |
750W |
| |
max. 5 / 3 A |
| |
max. 125 / 250 VAC |
MECHANICAL
| Operating Force |
4.5N |
| Life (nominal) |
1.5 million actuations |
| Contact Bounce |
<5ms |
| Travel |
0.8mm |
ENVIRONMENTAL
| Operating Temperature Range |
-25°C to +85°C |
| Ingress Protection |
IP 67 |
| Impact Rating |
IK 07 |
| Contact Material |
Ag |
| |
Stainless steel |
| Actuator Material |
Stainless steel |
MATERIAL
| |
Grade 304 DP1 stainless steel (2mm) |
For more details, please refer with our attached datasheet.
