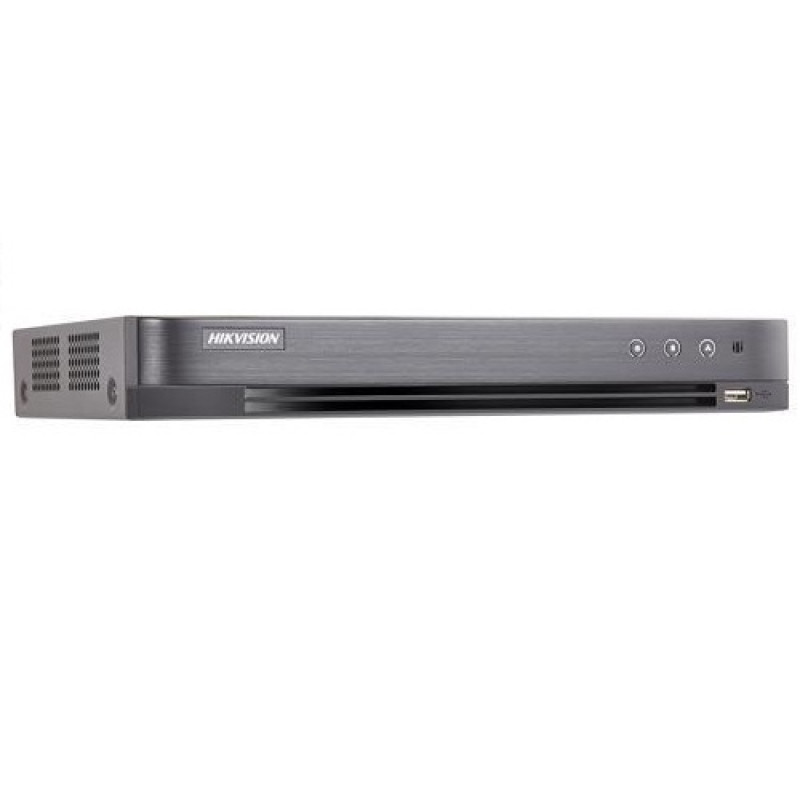

Hikvision, DS-7204HQHI-K1/P, 4 Channel 3MP Turbo HD 4.0 PoC DVR
- Brand:Hikvision
- Product Code:DS-7204HQHI-K1/P
- Availability:Please Call or Email Us to Check Availability
Hikvision, DS-7204HQHI-K1/P, 4 Channel 3MP Turbo HD 4.0 PoC DVR
4ch TVI / Analogue / AHD / CVI, 4-ch video + 1 IP Camera upto 4MP & 1-ch audio input, 1 SATA interface, 2MP @ 15fps, HDMI, VGA & BNC.
Key Features:
- Self-adaptive normal camera and Hikvision PoC camera connection
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 3 MP resolution for recording
- Automatic power supply management for PoC camera to guarantee safety
- Long distance transmission over UTP and coaxial cable
- 4-ch synchronous playback
Technical Specifications:
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.265+/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input Supports Hikvision PoC camera Note: Do not unplug or plug the PoC camera if it is powered by the external power supply |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF | |
| Synchronous Playback: | 4-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 6 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| General | ||
|---|---|---|
| Power Supply: | 48 VDC | |
| Consumption: | ≤ 40W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
For more details, please refer with our attached datasheet.
