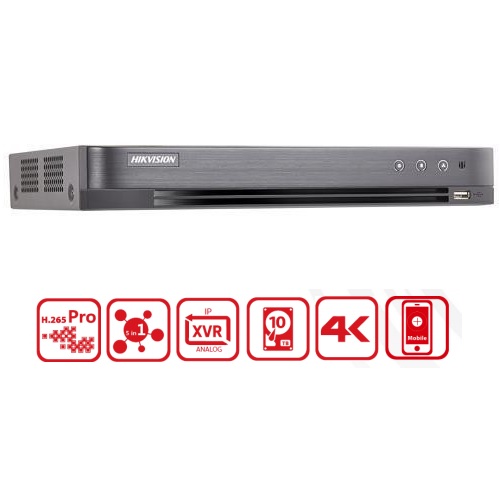

Hikvision, DS-7204HTHI-K1(S), 4 Channel 8MP 4K Turbo HD 4.0 DVR

Video/Audio Input

Audio Input:

4-ch

Analog and HD-TVI video input:

4-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types:

Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input

Video Input Interface:

BNC (1.0 Vp-p, 75Ω)

Audio Compression:

G.711u

Audio Input Interface:

RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output

HDMI/VGA Output:

HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz

Frame Rate:

Main stream:
8 MP@12fps, 5 MP@20fps, 3 MP@18fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:

32 Kbps-16384 Kbps

Stream Type:

Video/Video&Audio

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Audio Output:

1-ch RCA(Linear, 1kΩ)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Synchronous Playback:

4-ch

Network management

Remote connections:

32

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF

Hard Disk Driver

Interface Type:

1 SATA Interface

External Interface

Network Interface:

1; 10M / 100M / 1000M self-adaptive Ethernet interface

USB Interface:

1 USB 2.0 Interface & 1 USB 3.0 Interface

Serial Interface:

1; standard RS-485 serial interface, half-duplex

General

Power Supply:

12V DC

Consumption:

≤ 15 W

Working Temperature:

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity:

10% to 90%

Dimensions:

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
