Videx, 4K-7S, Surface 7 Button Door Entry Kit with Stainless Steel Facia and Gun Metal Grey Finish

Videx, 4K-7S, Surface 7 Button Door Entry Kit with Stainless Steel Facia and Gun Metal Grey Finish

  • Brand:Videx
  • Product Code:4K-7S
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


4K-7S, Videx, Surface 7 Button Door Entry Kit with Stainless Steel Facia and Gun Metal Grey Finish

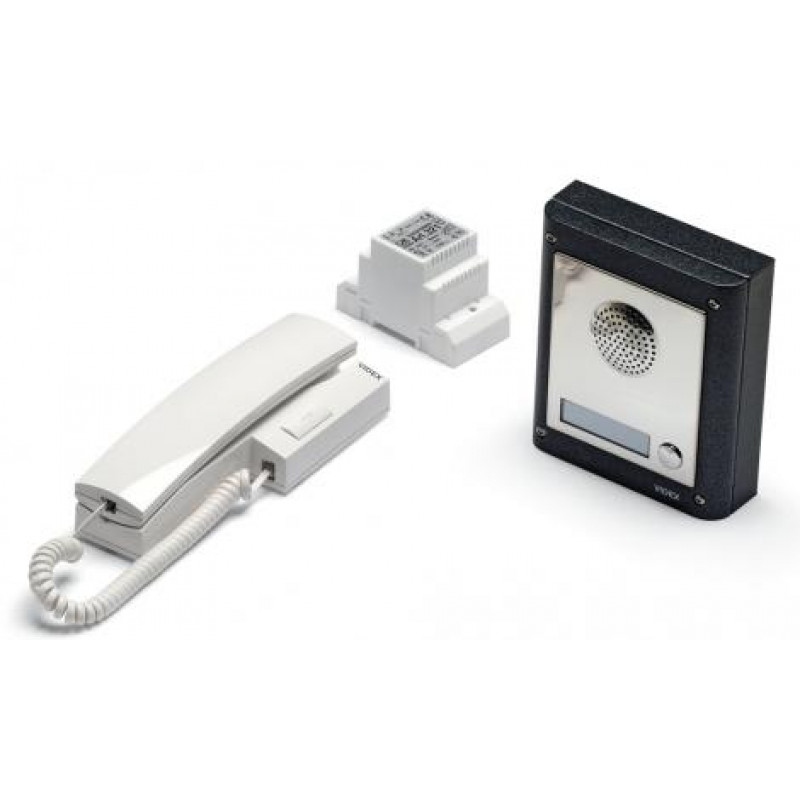

Audio entry kit based on the 4000 Series modular design incorporating two way speech, electronic call tone and lock release facility. The door station is available surface mounting with 7 call buttons each with a back lit name plate. The standard finish is a stainless steel facia with gun metal grey surround. An aluminium facia (/A) and a chrome (/C) or gold (/G) surround are also available. The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional handsets can be connected in each apartment.

4K Series Audio kit:

The 4000 Series audio door entry kits benefit from advanced features such as electronic call tone generation and lock release relay ncluded within the door panel. This reduces the cable requirements between the handset(s) and the door panel to only 4 (“3+1”) Connections. For this reason larger cable distances using small cores sizes can be achieved between door panel and telephones.

Seven Button Door Entry Kit Comprised of:

  • Outdoor station including a one call button speaker unit Art.4836-1 and a flush mounting box with module support and hinge Art.4851.Standard finishes: mirror stainless steel for the front plate and gun metal grey for the module support.
  • Art.3011 3000 Series Smart Line wall mount telephone with “door open” push button and electronic call tone with 3 level djustable volume control.
  • Art.321 Power Supply in a type A 3 module DIN box.
  • Art.4881 Surface Mounting Box.

 Specifications:

  • Number of entrances: 1
  • No. Of cores to telephone: 4
  • Recommended cable type: CW1308
  • Maximum No. Of telephones per call button: 3
  • Lock output: Dry contact (C NO)
  • Telephone model: 3011 (call tone)
  • PSU model: 321 (13Vac)
  • Amplifier module: 4836
