Videx, XK4K-1S, Surface 1 Button Proximity and Audio Kit includes 1 Outdoor station + 3011 Telephone, 4850 - 100 User Proximity Reader + PSU + Surface Mount Box [4000 Series]

0 reviews

Write a review

Brand:Videx
Product Code:XK4K-1S
Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

Description
Reviews (0)

XK4K-1S, Videx, Surface 1 Button Proximity and Audio Kit includes 1 Outdoor station + 3011 Telephone, 4850 - 100 User Proximity Reader + PSU + Surface Mount Box [4000 Series]

4000 Series audio entry kit with 100 user self contained proximity reader and 1 call button with back lit name plate. Features include electronic call tone and timed door release (1-99 seconds or latching). The kit comprises an entry panel with surface frame available in gun metal grey, chrome(/C) or gold(/G), a telephone and AC PSU. The telephone includes a three position volume control and is wall mountable. Up to 2 additional handsets can be connected in the same apartment. The programming of fobs/cards is carried out at the reader using a simple programming menu, buttons and LED's, up to 100 cards/fobs can be programmed (3 cards included)

Specifications:

Number of entrances: 1
No. Of cores to telephone: 4
Recommended cable type: CW1308
Maximum No. Of telephones per call button: 3
Lock output: Dry contact (C NO NC)
Lock time: 1 - 99 seconds or latching
Telephone model: 3011 (call tone)
PSU model: 321 (13Vac)
Amplifier module: 4836
Proximity module: 4850
Number of fobs/cards: 100

As 4K1 audio kit with the addition of a VIDEX stand-alone proximity reader module Art.4850. The user can open the door from the outside by simply presenting a card/fob to the external reader.

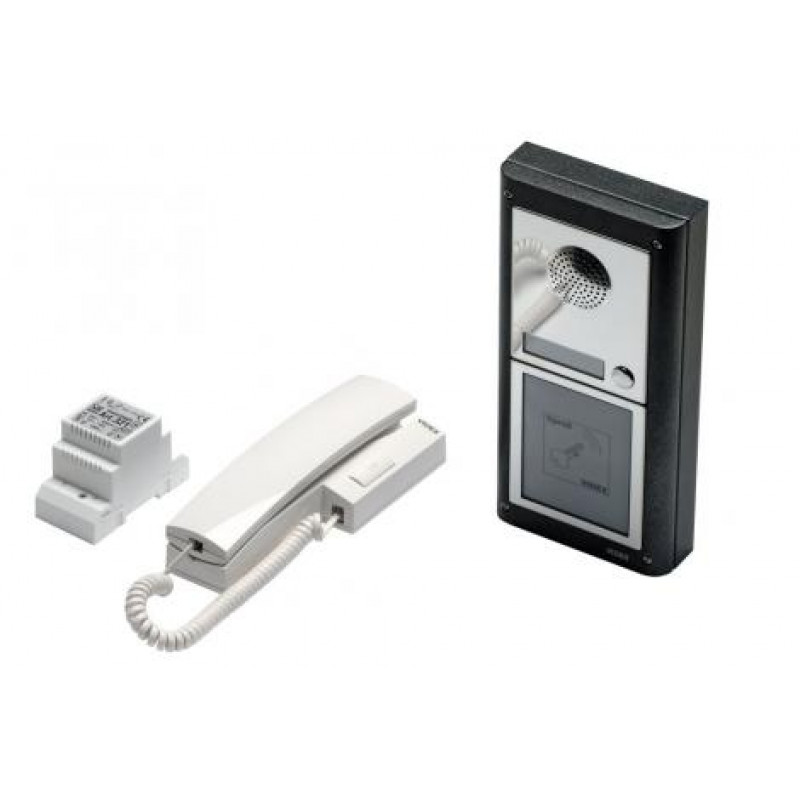

One button door entry kit comprised of:

1 Outdoor station including a one button speaker module Art.4836-1, one stand-alone proximity key reader Art.4850 (up to 100 keys / 1 relay output) and a surface mounting box with module support and hinge Art.4882. Standard finishes: mirror stainless steel for the front plate and gun metal grey for the module support.
1 Art.3011 3000 Series Smart Line wall mount telephone with “door open” push button and electronic call tone with 3 level adjustable volume control.
3 Art.955/C Coded proximity key card format (tag Art.955/T available on request).
1 Art.321 Power Supply in a type A 3 module DIN box.
Packing: briefcase 40x32x9cm total weight 3.3 Kg.

For more details, please refer with our attached datasheet and manuals.
