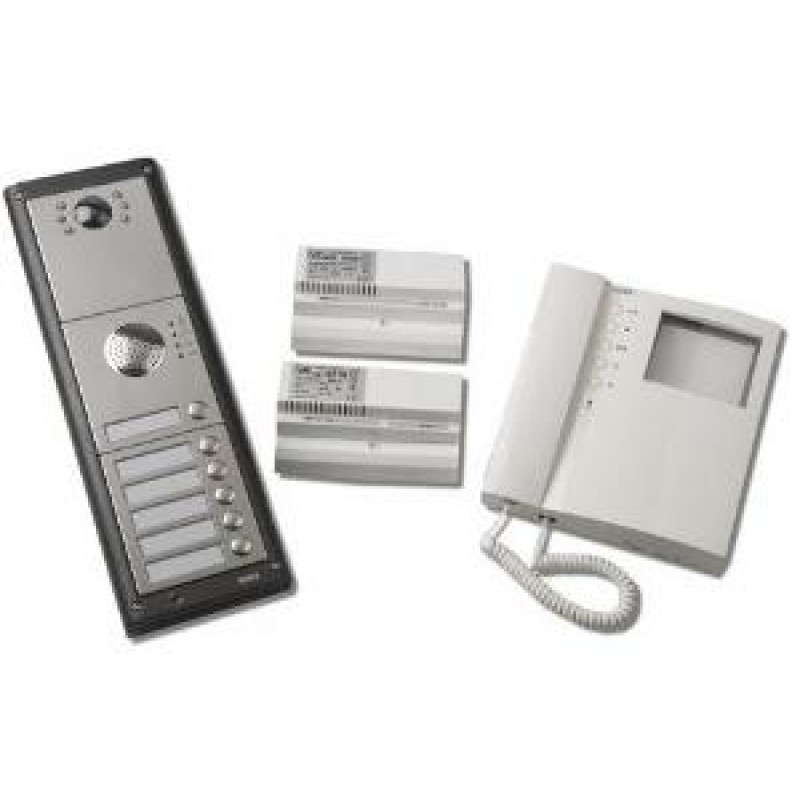

Videx, C4KVID3NC, Three Button Flush Colour Multi Apartment Video Kit in 4000 Series

C4KVID3NC, VIDEX, THREE BUTTON FLUSH COLOUR MULTI APARTMENT VIDEO KIT in 4000 SERIES

3 way 4000 series colour video systems. These systems are based on the 2200 non coax 6 wire video. The door panels have \"calling\" \"Speak\" and \"Door Open\" Led\'s and bright white led lighting for camera. Speakers have adjustable speech controls. Available in flush mount or surface (/S)Monitors have 3 position call volume adjustment, camera recall, contrast and brightness adjustment. a maximum of 3 monitors can used installed per call button ( or a combination of 3 monitors(3371), audio handsets (3117A) or extension sounders(512D). Requires 3980 mounting plate. Monitors are also available in silver(/CR) and carbon fibre effect (/CA)

Specifications:

• Number of entrances: 1 (Expandable to 10)
• No. Of cores to telephone: 7
• PSU: 12Vdc, 20Vdc
• Recommended cable type: CW1308
• Maximum number of call buttons: 12
• Maximum No. Of telephones per call button: 3
• Lock output: Dry contact relay (C, NO, NC)
• Videophone model: 3678
• PSU model: 521, 893N1
• Amplifier module: 4203
• Camera module: 4830/C

For more details, please refer with our attached datasheet.
