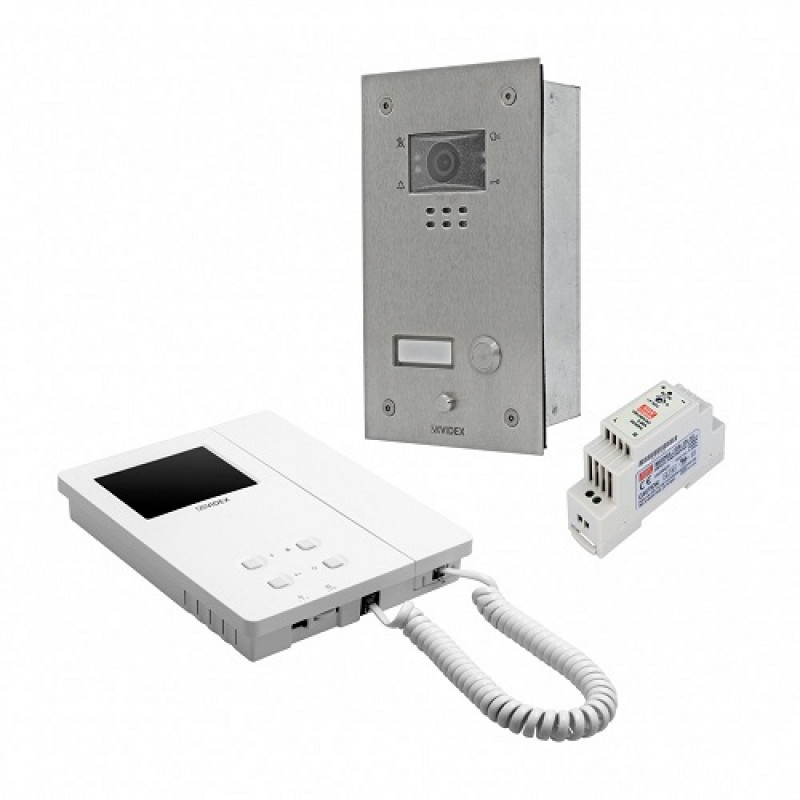

Videx, IPVR-1, Flush 1 button VR kit C/W VR130 Touch Screen Videophone

Videx, IPVK-1S, 1 Button IP kit c/w Panel and Touch Screen Videophone - Surface

The 4000 Series modular entrance panel can be expanded from 1 up to 42 call buttons and include any of the extensive range of 4000 Series modules available. It can be surface or flush mounted and is available in a number of finishes and panel sizes.

Vandal Resistant entrance panels are manufactured from 12 gauge 316 grade stainless steel and can be expanded from 1 up to 40 call buttons. Bespoke panel sizes are also available upon request.

The videophone is in the popular 6200 series design and incorporates a 3.5” touch screen display for both viewing visitors and navigating the function menu’s. The videophone is wall mountable and an optional desk kit is also available. Power options include POE or a 12Vdc power supply, additional input/outputs are included for auxiliary functions.

Additional system features include a call log with picture capture of the caller, intercommunication between devices in the same apartment or others and up to 16 videophones per apartment.

Key Features:

• Call progress LED's (4: call, busy, speak and door open)
• Expandable up to 40 call buttons
• Connection via LAN, WAN or private network
• 2x relay outputs and 2x PTE inputs
• RS485 bus connection
• External Camera input
• Wide angle camera as standard
• 3.5" 6200 series colour videophone with touch screen display and OSD menus
• POE or 12Vdc powered videophone
• RJ45 ethernet connection on the videophone
• Fully programmable buttons
• Up to 16 internal videophones per apartment with intercommunication facility
• Videx app available for tablets and smart phones
• Call log feature with picture capture facility

Technical Specification:

• Connection method: LAN, WAN or private network
• Relay outputs: 2x dry contacts, (C, NO, NC)
• PTE inputs: 2
• Power supply: POE or 12Vdc for 6296 videophone, 12Vdc for Speaker/Camera module
• RS485 connection: Yes (A, B, 0V)
• Event logging: Yes
• PSU model: DR-15-12 or HDR-15-12
• Speaker/Camera module: 4533
• Expandable to 40 buttons
• Videx app: Yes, for Android tablets and smart phones

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
