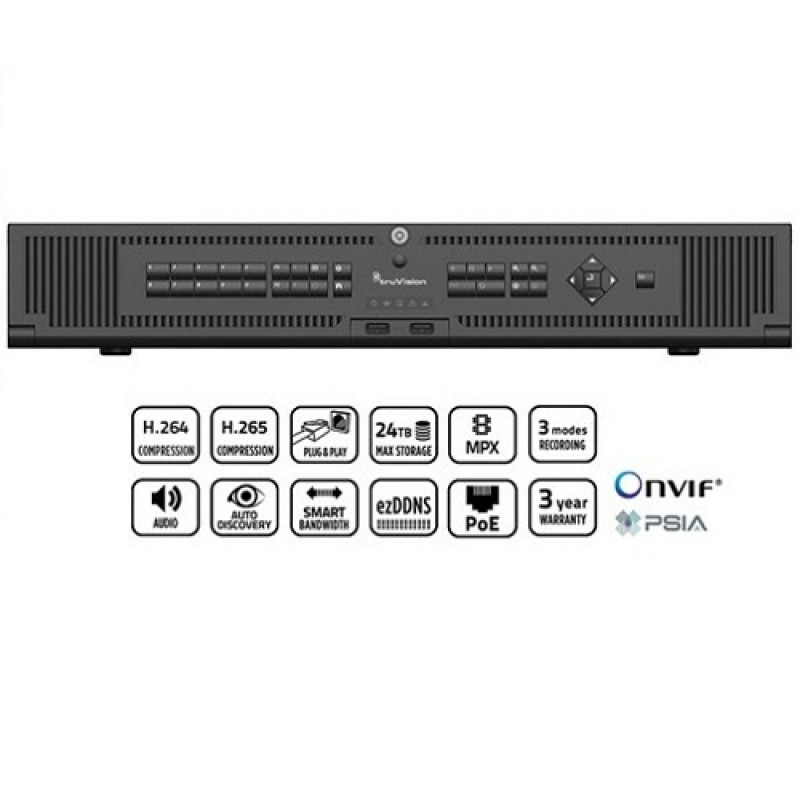

TruVision (TVN-2208S-18T) 8 IP Channel NVR 22, H.265 / PoE Switch - 18TB

TruVision (TVN-2208S-18T) 8 IP Channel NVR 22, H.265 / PoE Switch - 18TB

TruVision NVR 22S (TVN 22S) is a robust high performance H.264/H.265 network video recorder with 8 embedded plug & play PoE ports. With a total bandwidth of 80 Mbps available, the TVN 22S is able to connect up to 8 IP cameras and provide real time recording (25/30 fps) at Full HD 1080p resolution on all channels simultaneously. With its fully flexible bandwidth allocation, the TVN 22S allows recording resolutions up to 8MPX at various frame rates.

Ease of use
TVN 22S allows users full flexibility in the way they want to configure, manage and monitor their video surveillance solution. In addition to management of the unit through its browser interface or TruVision Navigator, the TVN 22S allows users to also operate the recorder locally using its front panel controls, local VGA or HDMI outputs and its intuitive on screen display.

Recording performance
The maximum on-board storage capacity for the TVN 22S is 24TB, using four six TB hard drives. The hard drives can be accessed via the lockable front panel door, allowing customers to easily expand storage as their system and/or requirements grow. Recording options include continuous, event and alarm. The three modes can be combined, to ensure that the most efficient recording is possible.

Plug-&-play functionality
Setting up TVN 22S is easy. Its embedded PoE ports allow you to connect TruVision IP cameras as they were analog cameras. When plugged in, cameras are automatically assigned IP addresses, added to the recorder and set up at default configuration. Each IP camera can also be set up individually to ensure full flexibility. The fully flexible PoE allocation feature ensures an optimally efficient use of the PoE power available.

H.265
The TVN 22S is supporting both H.264 and H.265 compression techniques. The H.265 compression is the next evolution of video encoding. Using H.265 will result in a reduced file size for the same video content and a reduced transmission bandwidth compared to H.264. This means that for the same storage capacity more video can be stored when using H.265 than H.264 encoding.To use the H.265 encoding in the TVN 22S, H.265 cameras need to be used. H.265 will be available in the TruVision S4 IP cameras.

Basic intrusion integration
TVN 22 has an alarmreceiver module embedded inside. The alarm message receiver can connect to up to three Interlogix IP intrusion panels that report in SIA or XSIA format. Alarm messages, disarming and arming messages can be send from the alarm panel to the recorder, which then can take actions (trigger alarm recording, send a PTZ to a preset, run a shadow tour or preset tour, trigger an alarm output or send a notification message to TVRmobile). Also the heartbeat message between panel and recorder is monitored. This solution offers straightforward alarm verification and is free of charge.

Key Features:

• Linux embedded Plug and Play configuration
• Up to 80 Mbps camera recording bandwidth
• Up to 8 IP channels
• Up to 8 embedded PoE camera ports
• PoE-af & PoE-at support

For more details, please refer with our attached datasheet.
