Videx, 8K12E, Flush 2 Entrance 1 Button Audio Kit includes 2 Intercoms & 2 Call Push Button Speaker Unit, 3011 Telephone with PSU [8000 series]

Videx, 8K12E, Flush 2 Entrance 1 Button Audio Kit includes 2 Intercoms & 2 Call Push Button Speaker Unit, 3011 Telephone with PSU [8000 series]

  • Brand:Videx
  • Product Code:8K12E
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


8K12E, Videx, Flush 2 Entrance 1 Button Audio Kit includes 2 Intercoms & 2 Call Push Button Speaker Unit, 3011 Telephone with PSU [8000 series]

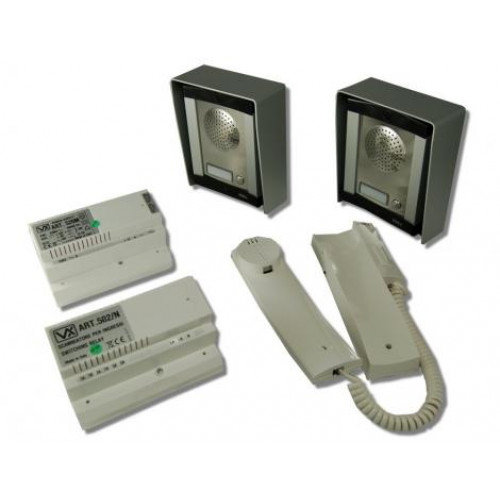

Two entrance 8000 series audio 1 button kit comprising of two 1 button panels with back lit name plates available in flush mounting, a wall mountable telephone with 3 position volume control for the electronic call tone, a two entrance switcher to ensure the occupant is only talking to one entrance at a time and only releases the entrance from which the call originates and an AC PSU. Up to 2 additional telephones can be added.

Specification:

  • Number of entrances: 2
  • No. Of cores to telephone: 4
  • Recommended cable type: CW1308
  • Maximum No. Of telephones per call button: 3
  • Lock output: 12Vac,
  • Telephone model: 3011 (call tone)
  • PSU model: 321 (13Vac)
  • Amplifier module: 8836M
Two button door entry kit comprised as 8K-1 but two button version with 2 intercoms and 2 call push button speaker unit Art.8836M-2.
  • Outdoor station including a two button speaker module Art.8836M-2, a digital codelock (Art.8800 Codelock module, 2 codes / 2 relays outputs with illumination panel),flush mounting box with module support and hinge Art.8852 plus covering frame Art.8862. Standard finishes: mirror stainless steel for the front plate and aluminium for the module support.
  • Art.3011 3000 Series Smart Line wall mount telephone with “door open” push button and electronic call tone with adjustable volume on 3 levels.
  • Art.321 Power Supply in a type A 3 module DIN box.
  • Packing: box 41x39x7cm, total weight 1.75 Kg.
For more details, please refer with our attached datasheet and manuals.
