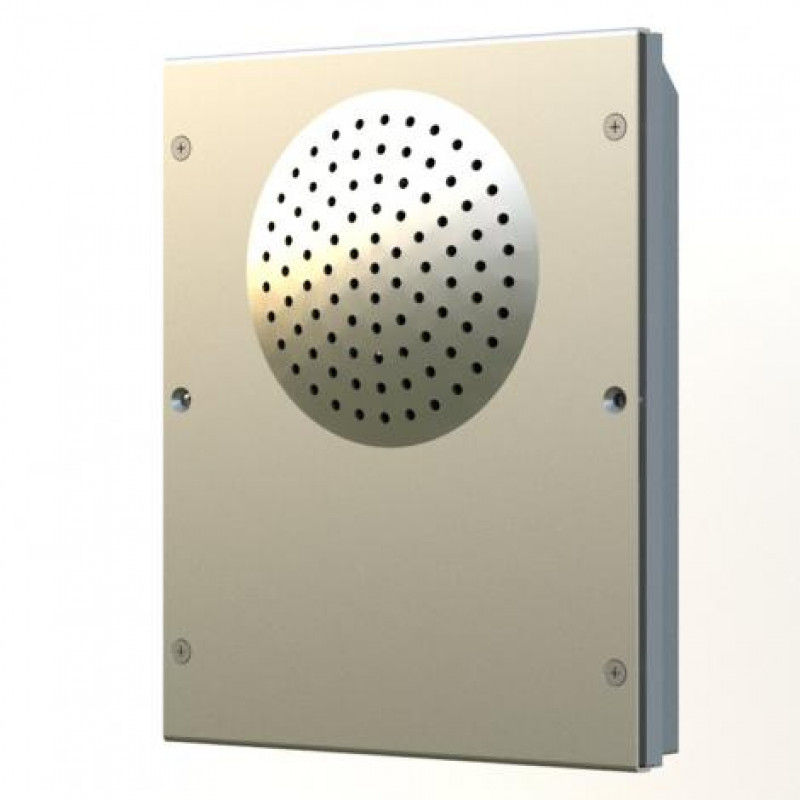

Videx, 8203-0, VX2200 Speaker Unit with 0 Button Available in Stainless Steel or Aluminium
- Brand:Videx
- Product Code:8203-0
- Availability:Please Call or Email Us to Check Availability
8203-0, Videx, VX2200 Speaker Unit with 0 Button Available in Stainless Steel or Aluminium
Connect up to 64 call buttons to this module using the button expansion modules. Connects directly to the 2 wire bus and powered by 13.5Vdc. Add the 8830(C) to make a video panel. Includes a dry contact change over relay output for the lock. All programming is carriedout via dip switches on the rear of the module. Volume adjustments are available for transmit, receive and balance.
- This unit is built into a single 8000 series module, it includes the speaker and interfaces to the digital bus.
- Up to 64 push buttons can be added to the interface using the Art.8843, 8844, 8845 etc (The 8203 is available with either 1 button, 2 buttons or no buttons).
Specifications:
- Number of buttons: 0
- Lock output: Dry contact (C, NO & NC) timed (Programmable)
- Power: 12Vdc
- Systems: VX2200
- Push to exit input: No
- Call reassurance tones: Yes
For more details, please refer with our attached datasheet.
