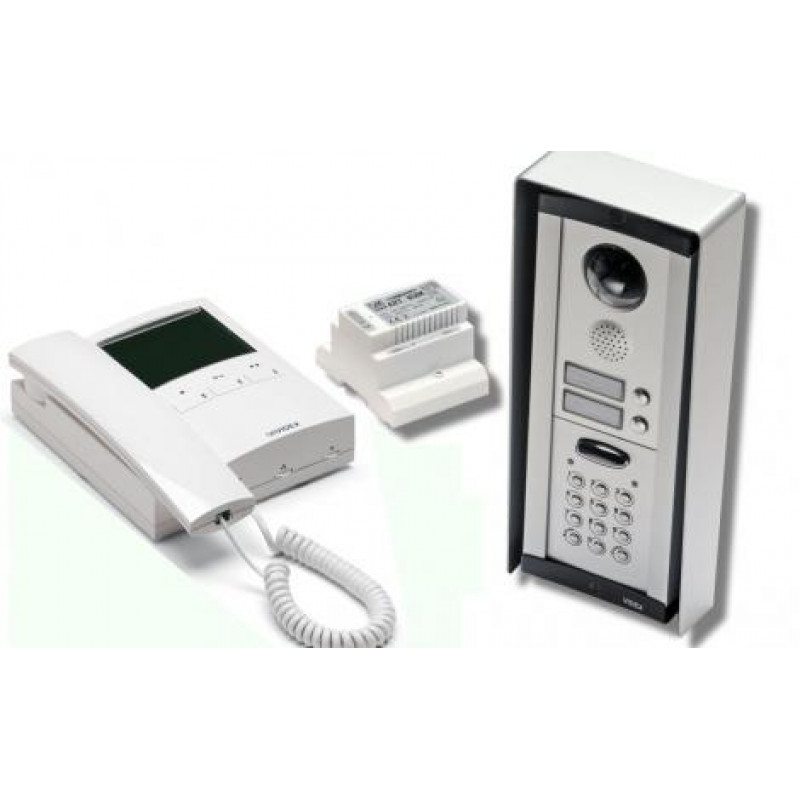

Videx, CVKC8K2S – Two Way Button 8000 Series Surface Colour Video c/w Codelock
- Brand:Videx
- Product Code:CVKC8K2S
- Availability:Please Call or Email Us to Check Availability
Videx, CVKC8K2S – Two Way Button 8000 Series Surface Colour Video c/w Codelock
1 and 2 button 8000 series colour videocode kits. The flexible design allows for the addition of up to a total of 4 entrance doors and up to 4 video handsets per call button with intercommunication between the handsets. Other facilities include adjustable call tone and time, camera recall (selectable), timed mute facility with led indication.
Door panels have adjustable reassurance tone and call progress led’s for calling, speak, door open and system busy. The system does not require coaxial cable. Available in surface (/S) or flush with aluminium or black(/BL) surround. The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output.
Features
- 1 & 2 button video kits based on the 8000 Series
- Surface or flush mount door panels
- Up to 4 videophones per call button
- Intercommunication between videophones
- 3 code, 3 relay coded access keypad
Technical Details:
- Number of entrances – 1 (Expandable to 4)
- No. Of cores to videophone – 6 from panel, 2 from PSU
- PSU – 24Vac
- Recommended cable type – CW1308
- Maximum number of call buttons – 2
- Codes – 2 code, 2 relay
- Code length – 4 to 8 digits
- Maximum No. Of videophones per call button – 4
- Lock output – 12Vdc or dry contact
- Videophone model – 6256
- PSU model – 850K
- Amplifier module – 8833/C
- Codelock module – 8800
For more details, please refer with our attached datasheet.
