Scope, EPOC SOLO, Personal Panic Alarm

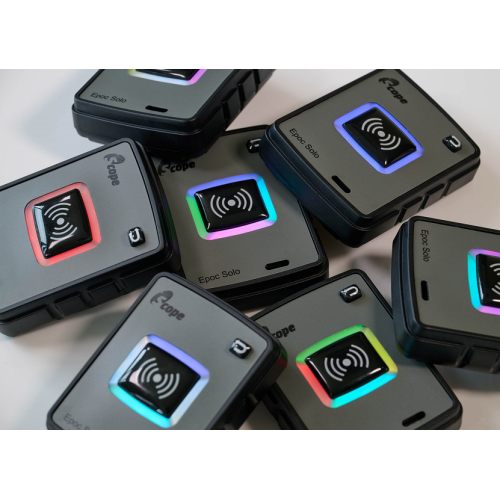

EPOC SOLO, Personal Panic Alarm

The On-Site solution for Personal Attack, Lone Worker & Indoor Tracking

The latest edition to Scope’s EPOC range of critical alert communicators

Keep it simple

Epoc Solo is a personal panic button for onsite, in-building applications. Press the big button, send the message. Job done. Want some reassurance? Use the ACK function to get a visual acknowledgement response on the LED “frame” array. Ideal for protecting vulnerable staff, high risk individuals or for school lockdowns.

Get More Involved

Versatile and scalable: send messages direct to EPOC BLU portable responders, which can be programmed to transmit back an acknowledgement.

Messages can also be sent to Scope fixed receivers, which can activate relays and send the data via RS232 to users’ own database apps.

Additionally, data can be sent to Scope repeaters for greater coverage and onward transmission to sitewide users carrying Scope pagers.

No Place to Hide

Indoor location: When paired with the separately available BLU beacons, the Epoc Solo will update it’s location every time it sees a new beacon. When the user sends an alert message, the current beacon location will be added to the message.

Indoor tracking: The Epoc Solo can be programmed to automatically transmit every time a new beacon is discovered, providing a discrete indoor tracking function as a person moves around the building. Ideal for indoor security patrols.

You’ll Never Walk Alone

Lone Worker: Programmable “No Motion” alarm will auto transmit after a preset period of no movement. A warning countdown allows the user to cancel the alarm if OK.

Man Down: Programmable fall alarm, triggered by sudden angle change. Auto transmit until Cancel feature ensures that the message is not missed.

Features

• POCSAG message transmit and ACK receive
• LED “frame” array for multi-colour status alerts
• Audible beep confirmation tones
• Man-Down and Lone Worker functions
• Bluetooth® indoor location & tracking option*
• Slimline charger option*
• Desktop programmer option*
• Wall mount bracket option*
• Holster with clip option*

[*subject to programmed setup and hardware accessories]

Specifications:

Power: Li-ion polymer 3.7V @850 mAh Recharheable battery
Dims: 97.4 (H) x 54.7 (W) x 16.7 (D) mm
Weight: 60 g approx.
Signal Format: POCSAG FSK
Frequency: 438 - 470MHz
Channel Spacing: 12.5KHz or 25 KHz
Frequency Deviation: +/-2.5KHz or +/-4.5KHz
RF Baud Rate: 512/1200/2400
Tx Performance: 25 mW RF power max
IOT: Bluetooth BLE V5.0
Compliance: Radio Equipment Direc ve 2014/53/EU, ROHS Direc ve (EU) 2015/863
Standards Applied:  EN 300 220-1 V3.1.1 (Radio), EN 301 489-1 V2.2.1 (EMC), EN 62368-1: 2020 (Safety)

Accessories:

The Epoc Solo is available with either a new slimline drop-in charger, or a desktop programmer/charger. The battery life between charges can be up to 450 days for a simple panic button application depending on usage level and features enabled.

Additionally, a smart Wall Bracket is available which will auto transmit a message when the Epoc Solo is inserted in the bracket, and a separate message when removed.

Coming soon: holster with belt clip, lanyards with quick release clips and more!

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
