IRRM 2, Relay Card

IRRM 2, Relay Card

  • Brand:Vanderbilt
  • Product Code:IRRM2
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

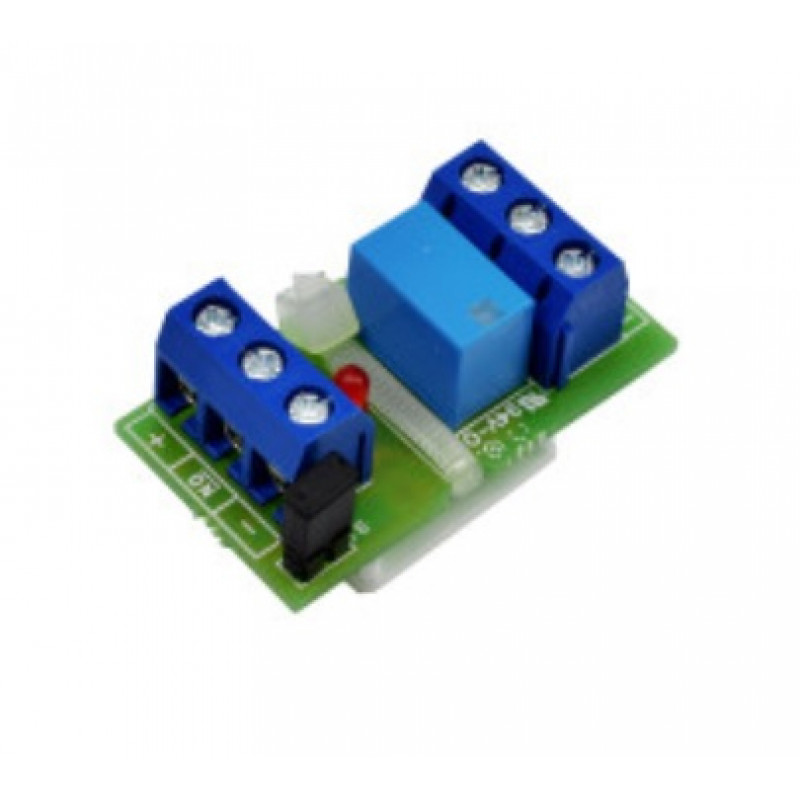

IRRM 2, Relay Card

One change over contact with a high impedance input to control the relay. If the control input is connected to minus the relay is energised and a LED indicate. IRRM2 has a 3 input terminal block. Relay driving circuit provides wide supply voltage range – from 9V to 30V.

Key Features:

  • Converts open collector outputs to volt free contacts
  • Wide operating voltage range
  • Low current consumption
  • Discrete and compact.

Specifications:

  • Voltage: 9 ~ 30 VDC
  • Outputs: 3 pin screw terminal
  • Operating voltage: 9 ~ 30 VDC
  • Operating temperature: -40 ~ +70°C
  • Mounting: Self-adhesive plastic holder
  • Inputs: 3 pin screw terminal
  • Current consumption: 12 mA ~ 21 mA
  • Current: 12 mA ~ 21 mA
  • Contact rating: 30 W, 30 V DC/AC, 1 A.

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
