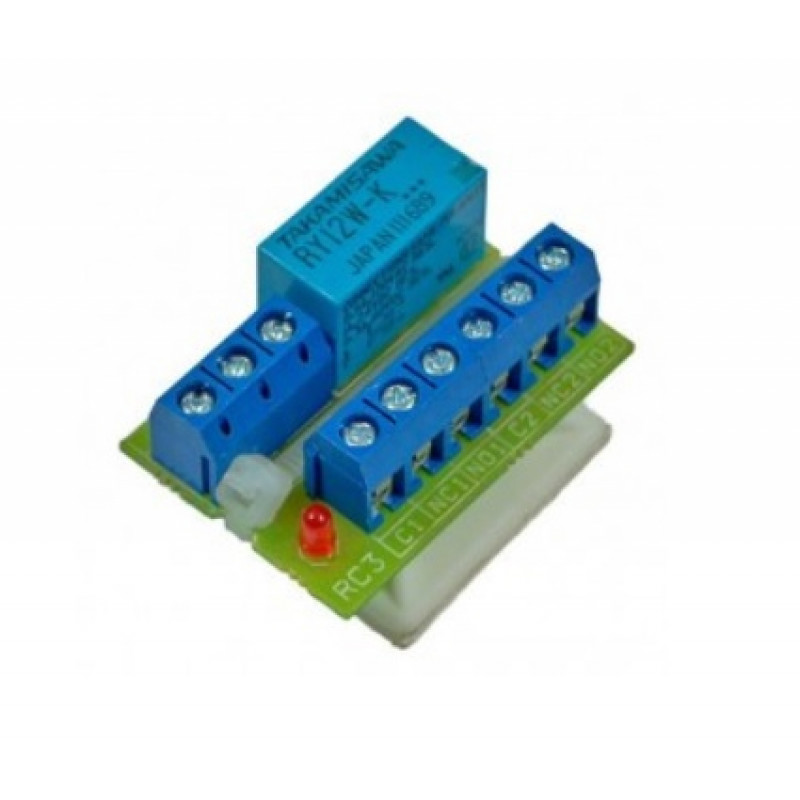

IRRM 3, Relay Card
- Brand:Vanderbilt
- Product Code:IRRM3
- Availability:Please Call or Email Us to Check Availability
IRRM 3, Relay Card
2 Change over contacts with a high impedance input to control the relay. If the control input is connected to minus the relay is energised and a LED indicate. IRRM3 has a 3 input terminal block. Relay driving circuit provides wide supply voltage range – from 9V to 30V.
Key Features:
- Converts open collector outputs to volt free contacts
- Wide operating voltage range
- Low current consumption
- Discrete and compact.
Specifications:
- Outputs: 6 pin screw terminal
- Voltage: 9 ~ 30 VDC
- Operating voltage: 9 ~ 30 VDC
- Operating temperature: -40 ~ +70°C
- Mounting: Self-adhesive plastic holder
- Inputs: 3 pin screw terminal
- Current consumption: 12 mA ~ 21 mA
- Current: 12 mA ~ 21 mA
- Contact rating: 30 W, 30 V DC/AC, 1 A.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
