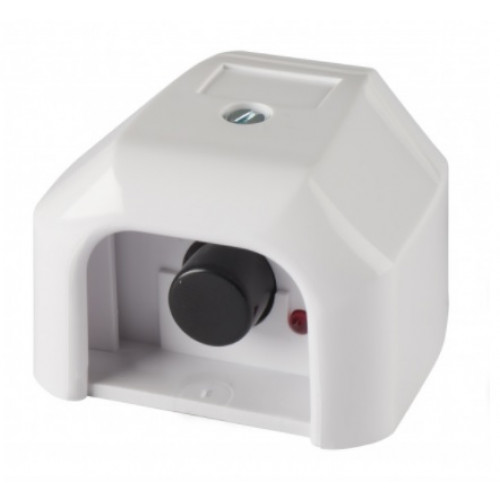

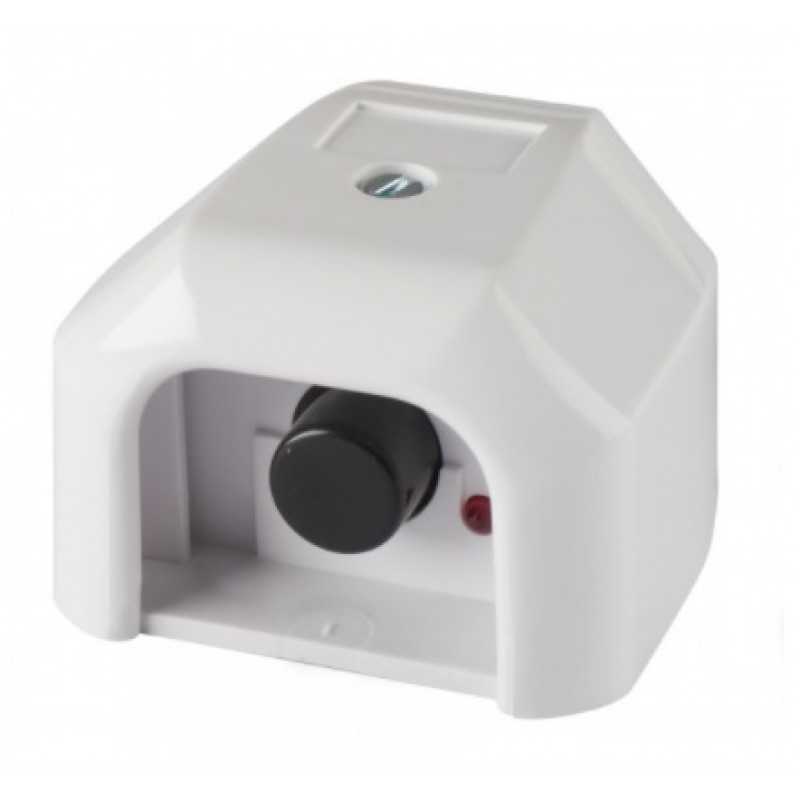

OFK200, Hold-Up Contact

OFK200, Hold-Up Contact

The OFK-200 Series Personal attack buttons are mechanical buttons aimed for banks, gas stations, warehouses, governmental institutions or other places where you can expect a threat. The contact function is gold-plated, not oxidizing, giving a long lasting working performance. It is reliable in function and not sensitive to bumps that can trigger a false alarm. It is well adapted to modern alarm systems with a low loop current. The push buttons are equipped with screw terminals with wire guard and extra free terminals. The ÖFK-200 is a latching push-button alarm switch with normally closed contacts. Operation of the button will release the alarm contacts and the reset is performed, when the button is depress.This switch includes a red LED alarm indicator connected in series with a 470 Ohm resistor.

Key Features:

• Optional indication of operation
• Latching or momentary versions
• Single push buttons
• Gold plated contacts for long term, reliable operation
• Tamper for cover removal
• Simple reset for latcahed version- no keys required
• Robust construction
• Flexible configuration options
• Silent electronic relays
• LED indication of operation.

Specifications:

• Power supply: 30 V
• Dimensions (L x W x H): 50 x 30 x 61 mm
• Housing material: ABS
• Colour: White
• Operating temperature: -20 ~ +70° C.

For more details, please refer with our attached datasheet.
