FAAC (785102) XP20D Directional Photocell System

FAAC (785102) XP20D Directional Photocell System w/Traditional 24V Transmitter and Receiver Power Supply

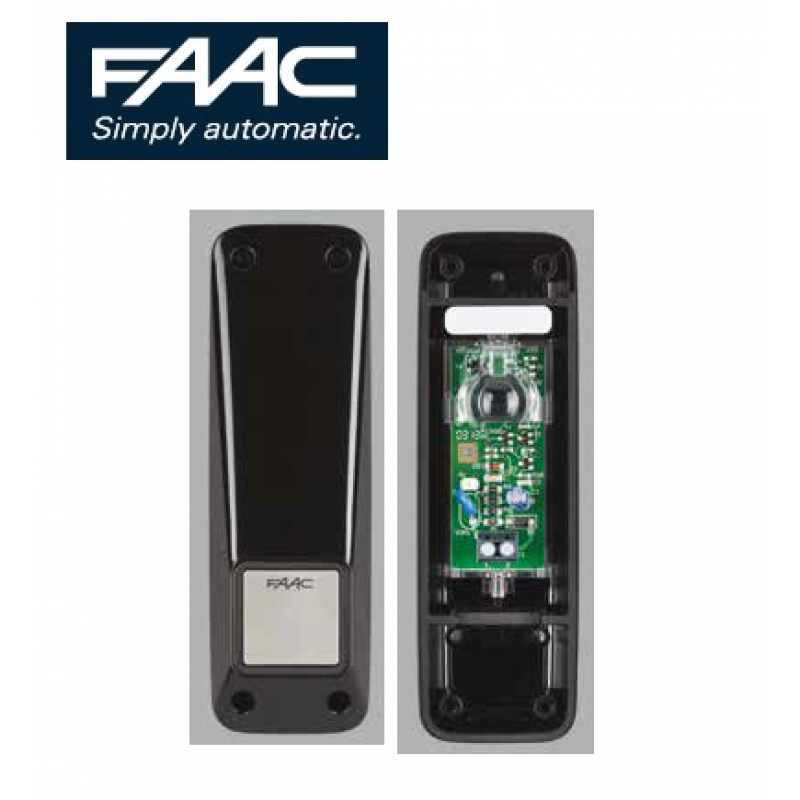

The new XP 20 D adjustable photocells comprise a transmitter and a modulated infra-red receiver with a range of up to 20 m.

The XP20 W has 4 channels to prevent cross talk, ideal for sites with photocells in close proximity.

(Please note that the XP20 W has a range of 10m when used with a battery.)
The obstruction of the light beam causes the receiver status to change

SIMPLICITY AND VERSATILITY OF INSTALLATION
The new XP 20 D photocells, both wall-mounted and column-mounted, allow the mechanical reduction of the beam along the horizontal axis of 180° (-90° +90°) and feature a vertical optical self-alignment function which is particularly useful when the area to protect is not entirely flat.

PERFECT IN ANY ARCHITECTURAL CONTEXT
Extremely compact size: 41 x 130 x 42 mm. Possibility of cable inlet both from the rear and from the underside of the casing (16 mm) and of column mounting.

SUPERIOR PROTECTION
Mould seal on the casing, so there is no risk of it being removed or fitted incorrectly, thereby ensuring theIP54 protection class.

The UK-XP20 protective cover (pictured above) is sold as a separate item.

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
