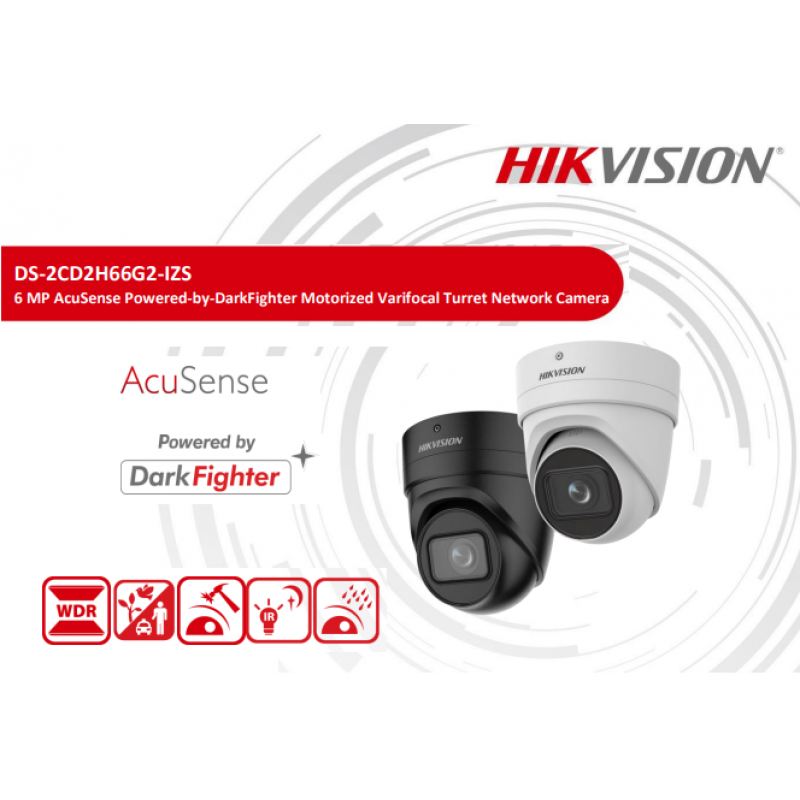

DS-2CD2H66G2-IZS(C), 6MP AcuSense external turret, 2.8-12mm motorized lens, IP66, H.265+, DC12V & PoE, WDR, 40m IR
- High quality imaging with 6 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Excellent low-light performance via powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP66) and vandal proof (IK10)
Specification
Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Max. Resolution: 3200 × 1800
- Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 99° to 35°, vertical FOV 53° to 20°, diagonal FOV 117° to 41°
- Lens Mount: Ø14
- Iris Type: Fixed
- Aperture: F1.4
DORI
- DORI: 2.8 to 12 mm: Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m, Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 40 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
