PF-KFD0-CS-EX2.51P, Two Channel Galvanic Isolator

PF-KFD0-CS-EX2.51P, Two Channel Galvanic Isolator

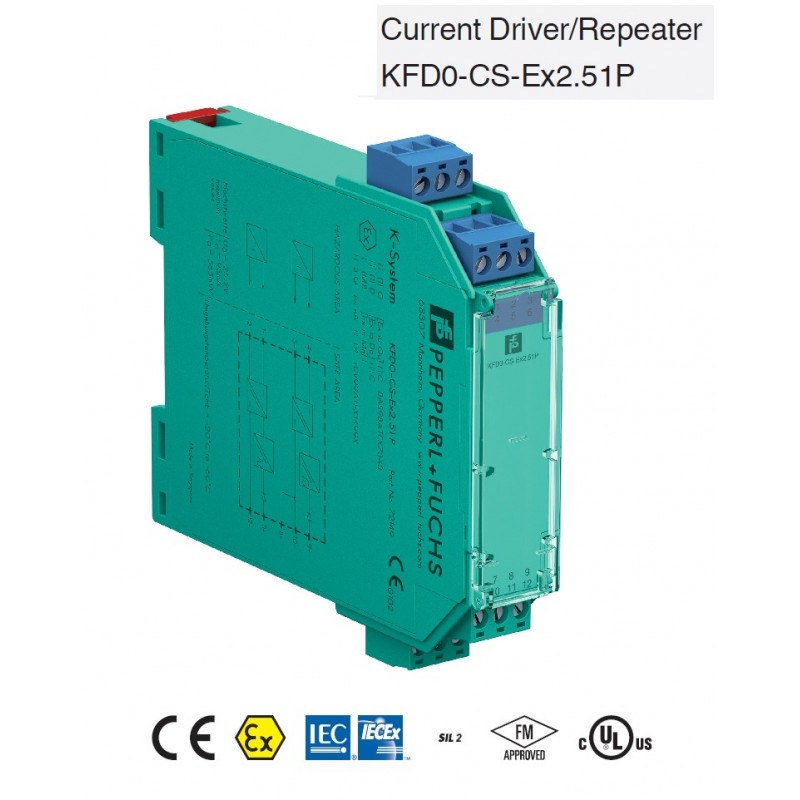

Current Driver/Repeater KFD0-CS-Ex2.51P

• 2-channel isolated barrier
• 24 V DC supply (loop powered)
• Current input/output 0 mA ... 40 mA
• I/P or transmitter power supply
• Accuracy 1 %
• Reverse polarity protection
• SIL 2 (SC 3) acc. to IEC/EN 61508

Function:

• This isolated barrier is used for intrinsic safety applications.
• The device transfers DC signals of fire alarms and smoke alarms from the hazardous area to the non-hazardous area. The device can also be used to control I/P converters, valves, indicators, and audible alarms.
• A reverse polarity protection prevents damage to the device caused by faulty wiring.
• The device is loop powered. From the control side no additional power supply has to be connected.
• Use the technical data to verify that proper voltage is available to the field devices.

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
