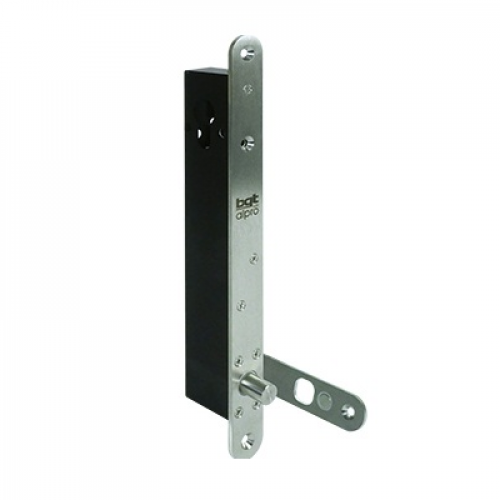

Alpro, DB25KO/PTL, 12-24VDC Key Overide PTL Monitored Deadlocking Bolt
The Alpro DB25KO deadlocking key override bolt offers the same functionality as the standard DB25 deadlocking bolt with provision for a europrofile cylinder as a means of mechanical override. The slimline design of the DB25KO enables fixing into very narrow sections. An advanced microprocessor module provides power reduction allowing continuous operation without heat generation.
Features include
- High Physical Security
- Robust Constructions
- Versatile Installation
- Triple Monitoring
- 5 Year Guarantee
Specification
- High Physical Security
- Holding force 1,000kg - automatic deadlocking Bolt throw 16mm
- Robust Construction
- All stainless steel bolt of 12.7mm diameter, linkages and springs. 3mm stainless steel faceplate and strike plates with fully enclosed mechanism.
- Maintained Key Override
- Using standard Euro profile cylinder case pierced both sides for operation either side.
- Versatile Installation
- Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.
- Slimline Dimensions
- 280mm(L) x 25mm(W) x 42mm(D)
- Back box 230mm(L) x 22mm(W) x 42mm(D)
- Faceplates
- Multiple Voltage Input
- Any voltage from 12v DC -10% to 24v DC +15%.
- Complete with built in transient and reverse polarity protection and continuously rated solenoid.
- Low Current Consumption
- Function
- Volts Current - Activate Current - Hold (after 200ms)
- 12vDC 1100mA 210mA
- 24vDC 1000mA 90mA
- Triple Monitoring
- Bolt, Door and Key position switches
- Built-in Access Control Module
- Automatic unlock period - 8 seconds.
- Multiple auto relock function - PTL - 8 times.
- Accessories
- Stainless steel surface mount kit.
- Approvals
- EN61000-6-1:2007
- EN61000-6-3:2007
For more details, please refer with our attached datasheet.
Note: This Product also available in Fail secure/PTO.
