PXB-100ATC-KH, Up to 100m External / 200m Internal Anti-Crawl Beam (4-Channel)
- Brand:Takex
- Product Code:PXB-100ATC-KH
- Availability:Please Call or Email Us to Check Availability
PXB-100ATC-KH, Up to 100m External / 200m Internal Anti-Crawl Beam (4-Channel)

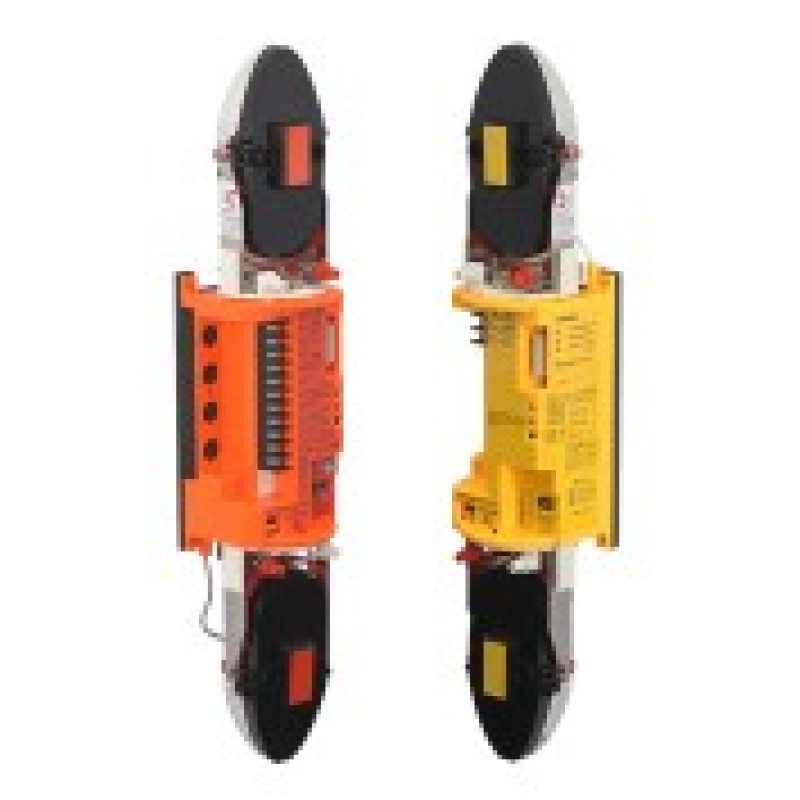

The PXB-100ATC-KH photoelectric beam sensor is designed specifically for use in our TA Series Beam Towers for high-risk applications where detection of all intrusion attempts is critical. Sophisticated dual response output systems have been designed to distinguish and allocate specific alarm responses based on the size and speed of target objects moving through the detection area, and a unique synchronized timing system ensures unrivalled detection performance and versatility.
Features:
- independent control of upper and lower beams
- specifically designed for use in TA series Tower Enclosures
- double coated electronics for demanding environments
- choose between synchro-quad and anti-crawl operation
- dual outputs for crawl attempt and full beam break
- sync wire allows unlimited stacking without crosstalk
- 4 selectable beam channels
- increased beam separation minimises nuisance alarms
- vivid internal colour aids beam alignment procedure
- lightning and surge protection up to 15kV
Specifications:
| Model | PXB-100ATC-KH |
| Detection system | Near infrared beam interruption system (4 beams simultaneous interruption or upper/lower 2 beams interruption) |
| Infrared beam | Double modulation pulsed beam by LED |
| Protection distance | Outdoor 100m (330ft) or less Indoor 200m (660ft) or less |
| Response time | AT output : upper and lower 2 beams simultaneous interruption 0.05sec. 0.1/0.2/0.3/0.5 sec. by either level interruption HF output : 0.05 sec by upper/lower 2 level simultaneous interruption |
| Supply voltage | 12V to 30VDC (Non-polarity) |
| Current consumption | Transmitter : 27mA / Receiver : 48mA |
| Alarm output | Dry contact relay output : N/C or N/O selectable Contact action : Interruption time (min. 2 sec) Contact capacity : 30V (AC/DC) 1A (resistive load) Protective resistor |
| Environmental output | Dry contact relay output : N/C or N/O selectable Action : activated when weather condition worsens (min. 5 sec) Contact capacity : AC/DC30V 1A (resistive load) Protective resistor |
| Alarm LED | Red LED (Receiver) ON : when an alarm is initiated |
| Attenuation LED | Red LED (Receiver) ON : when beam is attenuated |
| Ambient temperature range | -35°C to +66°C (-31°F to +151°F) |
| Beam Adjustment | Horizontal : ±90° / Vertical : ±20° |
| Functions | Modulated beam frequency selection Tone indicator Environmental module Beam power selection Transmitting power adjustment Programmed AGC Synchro timing selection Auto-gain lock function Monitor jack Tamper Response time adjustment Alarm output selection Environment output selection Upper / Lower beam switch Wireless Alignmnet Checker connecting function |
| Mounting positions | Inside TA Series Beam Towers |
| Wiring | Terminals |
| Weight | Transmitter : 360g Receiver : 450g |
For more details, please check with our attached manual.
