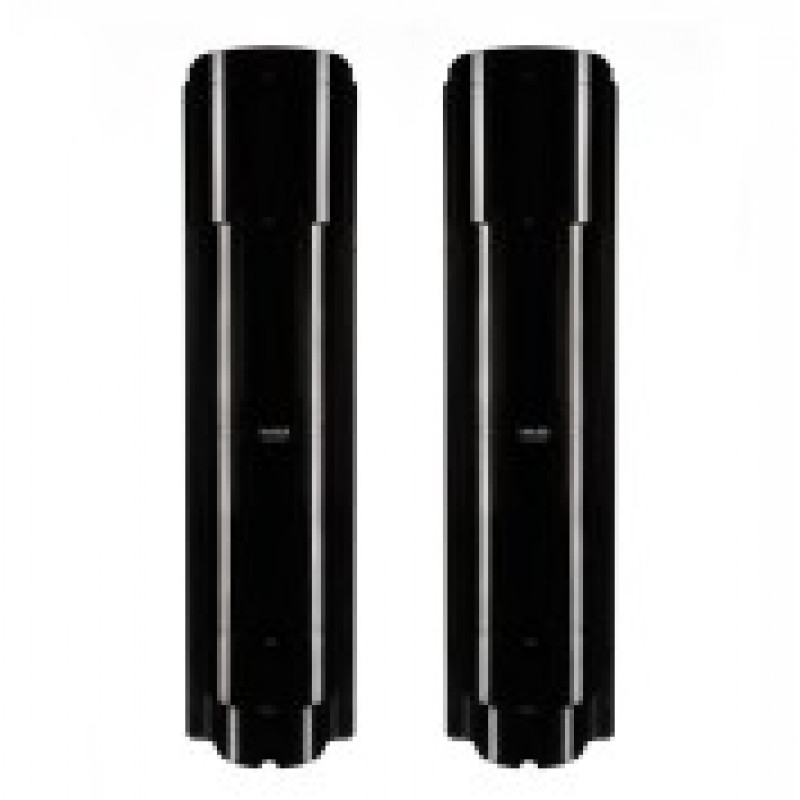

PXB-100ATC, Up to 100m External / 200m Internal Anti-Crawl Beam, 4-Channel. IP65. Includes Pole Clamps
- Brand:Takex
- Product Code:PXB-100ATC
- Availability:Please Call or Email Us to Check Availability
PXB-100ATC, Up to 100m External / 200m Internal Anti-Crawl Beam, 4-Channel. IP65. Includes Pole Clamps
Our PXB-100ATC photoelectric beam sensors were developed for high-risk applications where detection of all intrusion attempts is critical. Sophisticated dual response output systems have been designed to distinguish and allocate specific alarm responses based on the size and speed of target objects moving through the detection area, and a unique synchronized timing system ensures unrivalled detection performance and versatility.
Features
- independent control of upper and lower beams
- choose between synchro-quad and anti-crawl operation
- dual outputs for crawl attempt and full beam break
- sync wire allows unlimited stacking without crosstalk
- 4 selectable beam channels
- increased beam separation minimises nuisance alarms
- vivid internal colour aids beam alignment procedure
- lightning and surge protection up to 15kV
- IP65 housing
Specifications:
| Model | PXB-100ATC |
| Product type | Photoelectric Beam Sensor |
| Detection system | Near infrared beam interruption system (4 beams simultaneous interruption or upper/lower 2 beams interruption) |
| Infrared beam | Double modulation pulsed beam by infrared LED |
| Protection distance | Outdoor 100m (330ft) or less Indoor 200m (660ft) or less |
| Max. beam range | Outdoor 1000m (3300ft) or less Indoor 1000m (3300ft) or less |
| Response time | OR gated : upper and lower 2 beams simultaneous interruption 0.05sec. upper or lower 2 beams interruption : 0.1/0.2/0.3/0.5 sec. (selectable) AND gated : upper and lower 2 beams simultaneous interruption 0.05sec. |
| Supply voltage | 12V to 30VDC (Non-polarity) |
| Current consumption | Transmitter : 27mA / Receiver : 48mA |
| Alarm output | Dry contact output : N/C or N/O selectable Contact action : Interruption time (min. 2 sec) * During the synchro signal down, alarm signal output continuously Capacity : AC/DV30V 1A (resistive load) Protective resistor |
| Environmental output | Dry contact output : N/C or N/O selectable Action : activated when weather condition worsens Capacity : AC/DC30V 1A (resistive load) Protective resistor |
| Tamper output | Dry contact output : N/C Action : activated when cover is detached Capacity : AC/DC30V 0.1A (resistive load) Protective resistor |
| Alarm LED | Red LED (only Receiver) ON : when an alarm is initiated |
| Attenuation LED | Red LED (only Receiver) ON : when beam is attenuated |
| Functions | Modulated beam frequency selection Tone indicator Environmental module Beam power selection Transmitting power adjustment Programmed AGC Synchro timing selection Auto-gain lock function Monitor jack Tamper Response time adjustment Alarm output selection Environment output selection Upper / Lower beam switch Wireless Alignmnet Checker connecting function |
| Beam Adjustment | Horizontal : ±90° / Vertical : ±20° |
| Ambient temperature range | -35°C to +66°C (-31°F to +151°F) |
| Mounting positions | Outdoor, Indoor |
| Wiring | Terminals |
| Weight | Transmitter : 1400g (49oz) Receiver : 1470g (51.5oz) |
| Appearance | PC resin (wine red) |
| Accessory | Pole attachment, Anti-bird spike, Screws, Instruction manual |
For more details, please check with our attached datasheet.
