TAKEX (PB-100AT-KH), Up to 100m Outdoor / 200m Indoor, 4-Channel, Anti-Crawl Beam

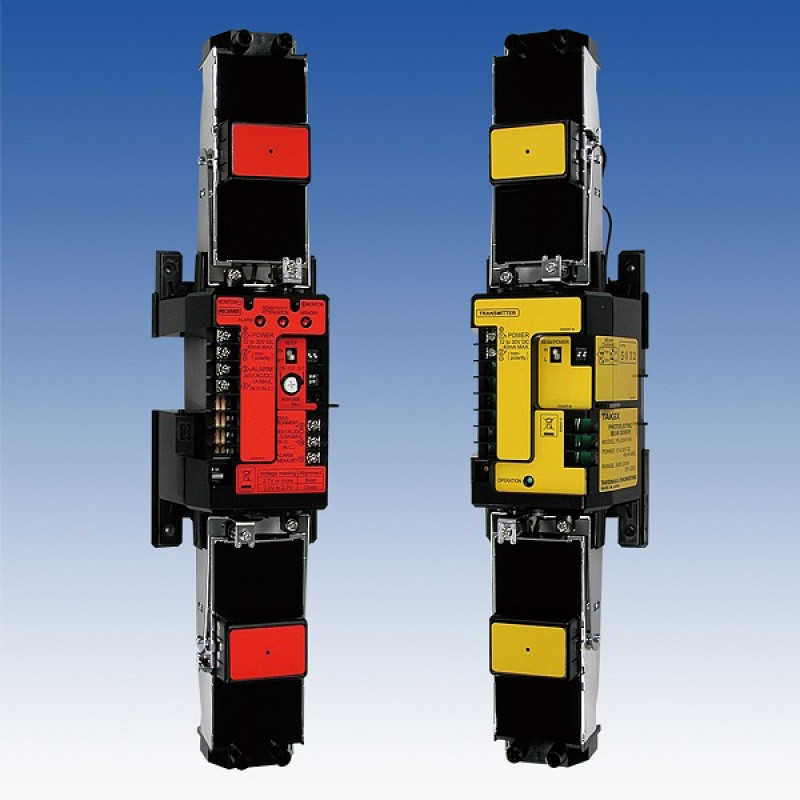

PB-100AT-KH Anti-Crawl Beams are available for high-security applications to detect low-level or crawling intrusion, designed specifically for use in TA Series Beam Towers.
Supplied with PTKH ‘Quickfix’ mounting brackets for fast, trouble-free assembly, the beam units locate in vertical slide-channels in the TA tower spine, allowing easy and precise height adjustment.
KH Beams and TA Towers are the perfect combination for reliable perimeter intrusion detection in the most demanding of situations.
- Dual Synchro-Twin Beams to detect crawling intrusion
- Selectable 4-Channel Beam Frequencies
- Double Modulated Beam for unsurpassed Light Immunity
- Monitor Jack for alignment with Multi-Meter
- Audible Alignment Tone
- Environmental (anti-fog) Monitoring Circuit
- Dynamic A.G.C. Circuit
- Double coated electronics for corrosion protection
- For use in TA Series Tower Enclosures
| SPECIFICATIONS | |
|---|---|
| Type |
Anti-crawl
|
| Detection system |
Near infrared beam interruption system
(TR,-RE 4 beams simultaneous interruption or upper 2 beams interruption or lower 2 beams interruption) |
| Infrared beam |
Double modulation pulsed beam by LED
|
| Detection distance |
Outdoor 330' (100m) or less
|
| Max. arrival distance |
Tenfold 3300' (1000m)
|
| Frequency Selection |
4 Channels
|
| Response time |
Dual response time system 0.035-0.5sec. (AND gated)
0.1, 0.2, 0.3, 0.5sec. (OR gated) |
| Supply voltage |
10V to 30V DC (non-polarity)
|
| Current consumption |
85mA or less at protection (Max. 120mA or less)
|
| Alarm output |
Dry contact relay 1c
Reset : Interruption time + off-delay (approx. 1.5 sec.) Contact capacity : 30V AC / DC, 1A or less |
| Environmental output |
Dry contact relay : 1c
Contact operation : Output when weather condition gets worse Contact capacity : 30V AC / DC, 1A or less |
| LED indicator |
Red LED (receiver) lights when an alarm is initiated
Red LED (receiver) lights when beam reception is attenuated |
| Functions |
Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Beam selector, Programmed AGC. Auto-gain lock function, Monitor jack
|
| Adjustment |
Horizontal : ±90°, Vertical : ±10°
|
| Mounting position |
Inside TA series Beam Towers
|
| Wiring |
Terminals
|
| Weight |
Transmitter : 10.6 oz (300g)
Receiver : 14.1 oz (400g) |
| Appearance |
ABS resin
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-31°F to +151°F (-35℃ to +66℃)
|
| IP Rating |
N/A
|
Please Note : This sensor is designed to detect intrusion and to initiate an alarm ; it is not a burglary or a crime preventing device. TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive surge by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.
