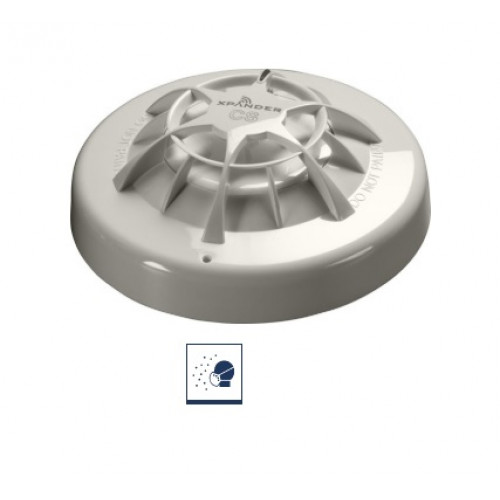

Apollo, XPA-HT-11171-APO, XPander CS Heat Detector

Apollo, XPA-HT-11171-APO, XPander CS Heat Detector

There are two heat detectors in the XPander range, designed to suit a wide variety of operating conditions.A Static Heat Detector (CS) which responds only when a fixed temperature has been reached and a Rate-of-Rise Detector (A1R) which has a fixed upper limit, but in addition, measures the rate of increase in temperature.

Key Features:

• Wireless
• Can be used in applications where smoke detectors are unsuitable
• Ideal for environments that are dirty or smoky under normal conditions
• CS detectors are ideal for use in
• environments with rapid temperature fluctuations such as boiler rooms
• Bi-directional (monitored) radio platform
• Five-year battery life using
• standard AA alkaline batteries.

Specifications:

• Applications : Dusty environments
• Fire Type : Fast burning, flaming fires
• Environmental
  • Humidity (Min) : 0% RH
  • Humidity (Max) :95% RH
  • Humidity Note : no condensation or icing
  • Humidity : 0% to 95% (no condensation or icing)
  • Operating Temperature (Min) : -10°C
  • Operating Temperature (Max) : 50°C
  • Operating Temperature : -10 to 50°C
• Conformance:
  • Standards : EN 54-5
  • Approvals : CPR
• Mechanical:
  • Colour : White
  • Materials Housing : Polycarbonate
  • Product Diameter : 105mm.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
