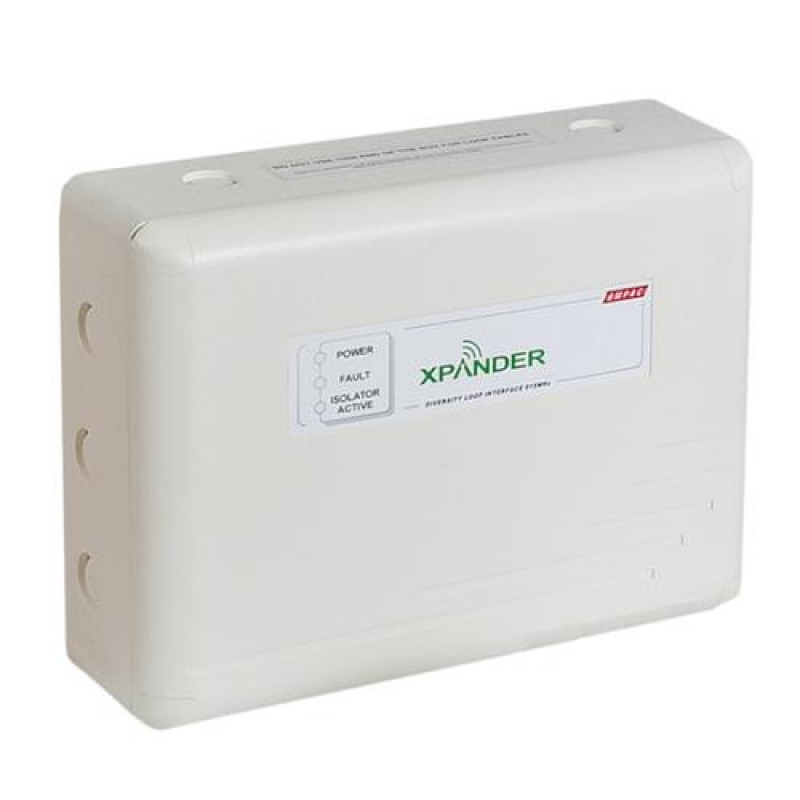

The XPander Loop Interface Unit can monitor up to 31 XPander devices and report each device's status to an intelligent control panel.

The Xpander Diversity Interface is connected to the loop and provides communications from the control panel to the wireless devices and vice versa. The current drawn from the Interface should be taken into consideration when calculating the total load of a loop.

An 8-segment DIL switch is provided for the address of the Interface to be set. When polled by the control panel, the Xpander Interface returns a pre-set analogue value of 16 in normal condition. The Xpander Diversity Interface has an integral LCD display which gives information on the state of the wireless detectors. The Diversity Interface transmits and receives signals via the integral Diversity Aerials which require no adjustment or maintenance.

Key Features:

• Connects up to 31 XPander devices to an Apollo Addressable loop
• Translates radio signals from XPander detectors to the control panel
• Built in loop isolator
• Loop-powered

For more details, please refer with our attached datasheet.
