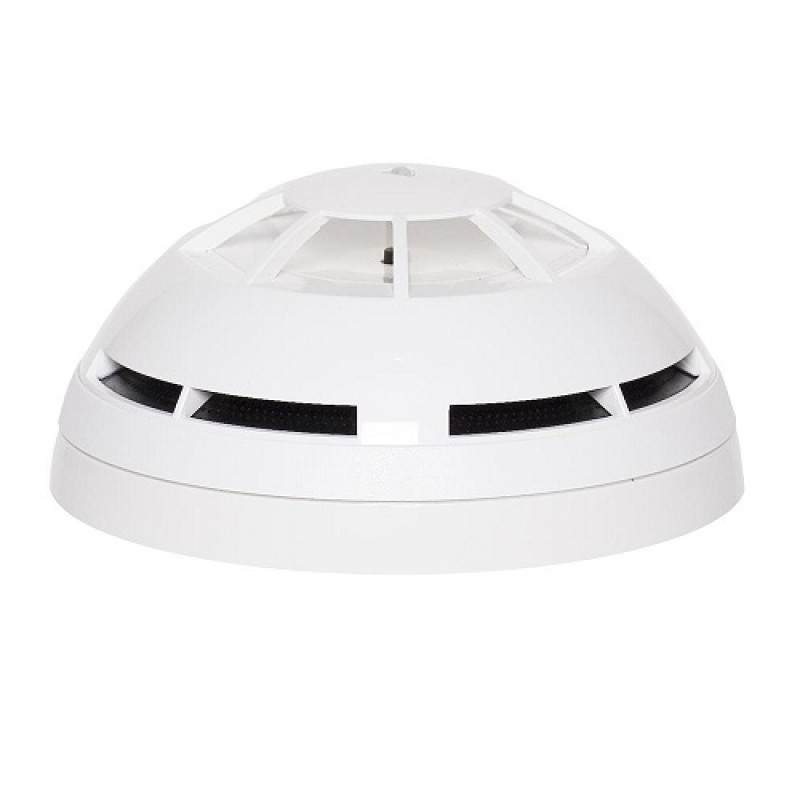

Argus (S1000) Conventional Optical Smoke Detector
- Brand:Argus Security
- Product Code:S1000
- Availability:Please Call or Email Us to Check Availability
Argus (S1000) Conventional Optical Smoke Detector
The S1000 is a cost effective and aesthetically pleasing non-addressable optical smoke detector. These detectors are designed for open area protection and provide the earliest warning of fire, whilst utilising advanced chamber design to ensure reliability and a high level of unwanted alarm rejection.
A centrally positioned LED indicator provides 360° visibility of detector activation and an in-built magnet test feature allows easy activation to verify operation of the detectors. A selection of connection bases make the unit compatible with most conventional control equipment.
Key Features:
- Double dust trap chamber design
- Internal algorithm processing optimises performance
- 3rd party certified
- Colour options available
- Central LED for 360° visibility
- Resistor and/or diode base for wide panel compatibility
- Low profile design
- Programmable flashing LED function
Specifications:
- Power supply: 10-30 Vdc
- Average standby current: 90 μA @ 24 Vdc
- Max alarm current: 40 mA
- Max remote output current: 18 mA
- Dimensions: 110mm x 54mm
- Operating Temperature (no icing): -10°C to +55°C
- Max Humidity: 95% RH (non condensing)
- IP rating: 40
