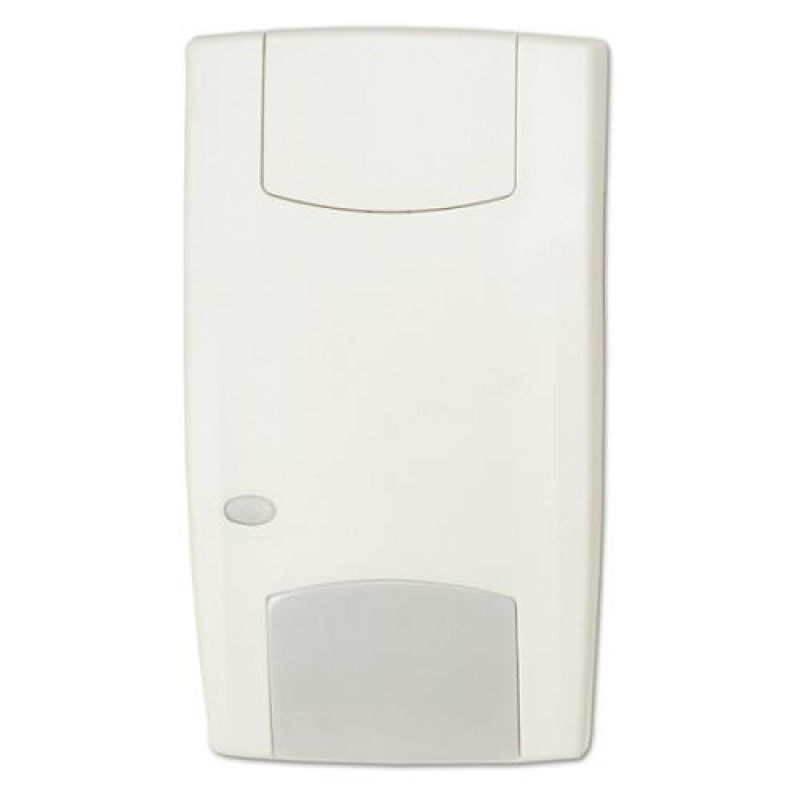

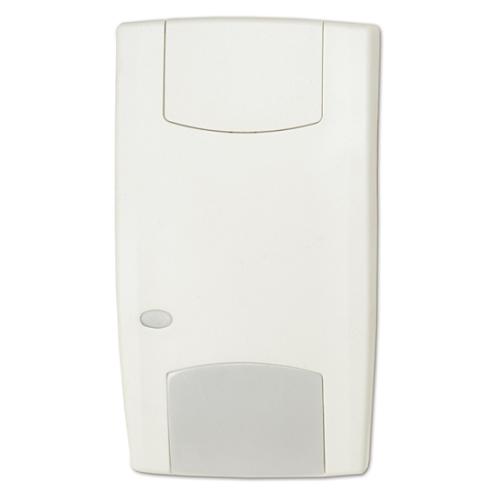

Aritech, VE1012-D, 12m PIR Wide Angle PIR Motion Detector (9 Curtains)

Aritech, VE1012-D, 12m PIR Wide Angle PIR Motion Detector (9 Curtains)

  • Brand:UTC (Aritech)
  • Product Code:VE1012-D
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Aritech, VE1012-D, 12m PIR Wide Angle PIR Motion Detector (9 Curtains)

Motion sensors from GE have the most advanced mirror optics in the security industry. This unique optical mirror technology uses a combined step and gliding focussing mirror, which provides the sensor with a continuous detection curtain, which allows detection of an object without interruption. To increase the detection density, sensors of the 1000 series use a '' 3Brid orthogonal '' mirror optic, which generates detection probes with vertical alignment for the detection of IR radiation via a horizontal mirror structure. This orthogonal invention is the key to design a mirror with additional detection curtains without sacrificing signal strength and to increase the size of the sensor.

Key Features:

  • Passive infrared motion detector
  • 3-Brid Gliding Focus mirror optics
  • Plug-in electronics
  • Sealed optics
  • ''V2E'' Signal evaluation to avoid false alarms
  • Detection by coat and umbrella
  • Full creep protection
  • Selectable detection range by mirror block
  • Autofocus with constant range sensitivity
  • No adjustment required for different mounting heights
  • Mighty angular deviation of walls
  • EN50131-2-2 Grade 2 certified
  • Distinctive European approvals applied for
  • VdS recognition: G110516

Technical Specification:

  • Detection range : 12m (40ft)
  • Anti-creep protection : Yes
  • Sensitivity : Normal / High
  • Coverage area : 86 ° with 9 curtains
  • Selection of the detection area : Curtain Adhesive Foils
  • Mounting height : 1.8 to 3.0 m (6 to 10 ft)
  • Power supply : 9 to 15 VDC
  • Power consumption (nom.) : 4.4 mA
  • Alarm relay (potential-free) : NC when energized
  • Sabotage relay (potential-free) : NC when housing is closed
  • External control inputs : Go
  • Alarm memory : No
  • PIR signal evaluation : V2E
  • Dimensions (W x H x D) : 108 x 60 x 46 mm
  • Environmental conditions : -10 to + 55 ° C (14 to 130 ° F); 95% relative humidity
  • Tear-off contact : Optional
  • EN50131-2-2 : Grade 2
