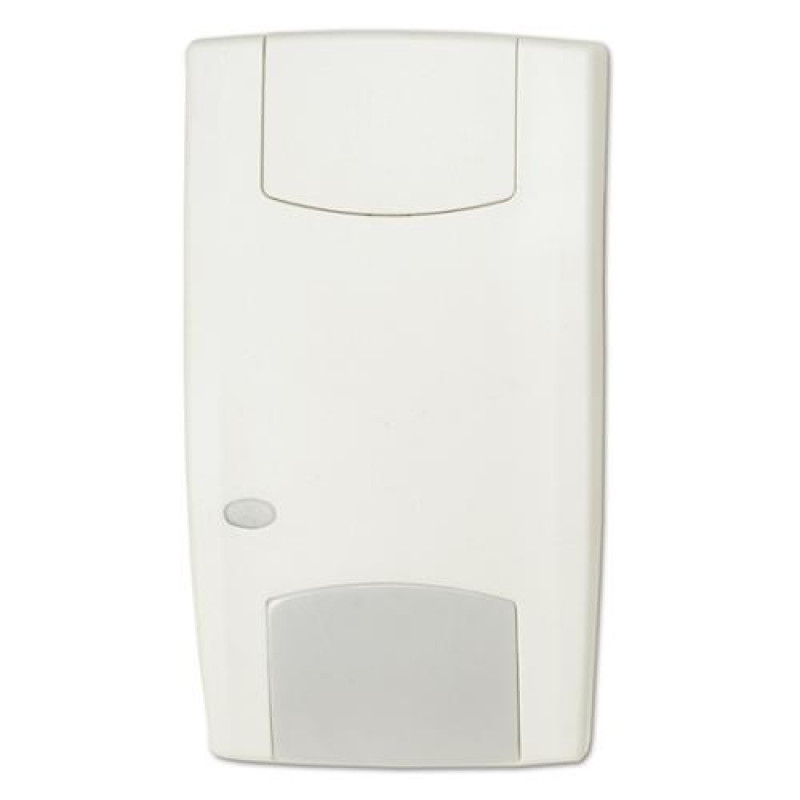

Aritech, VE1016-D, 16m PIR Wide Angle PIR Motion Detector (9 Curtains)
- Brand:UTC (Aritech)
- Product Code:VE1016-D
- Availability:Please Call or Email Us to Check Availability
Aritech, VE1016-D, 16m PIR Wide Angle PIR Motion Detector (9 Curtains)
Motion sensors from GE have the most advanced mirror optics in the security industry. This unique optical mirror technology uses a combined step and gliding focussing mirror, which provides the sensor with a continuous detection curtain, which allows detection of an object without interruption. To increase the detection density, sensors of the 1000 series use a \'\' 3Brid orthogonal \'\' mirror optic, which generates detection probes with vertical alignment for the detection of IR radiation via a horizontal mirror structure. This orthogonal invention is the key to design a mirror with additional detection curtains without sacrificing signal strength and to increase the size of the sensor.
Key Features:
- Passive infrared motion detector
- 3-Brid Gliding Focus mirror optics
- Plug-in electronics
- Sealed optics
- \'\'V2E\'\' Signal evaluation to avoid false alarms
- Detection by coat and umbrella
- Full creep protection
- Selectable detection range by mirror block
- Autofocus with constant range sensitivity
- No adjustment required for different mounting heights
- Mighty angular deviation of walls
- EN50131-2-2 Grade 2 certified
- Distinctive European approvals applied for
- VdS recognition: G 109508
Technical Specification:
- Detection range : 16 m (50 ft)
- Anti-creep protection : Jan
- Sensitivity : Normal / High
- Coverage area : 86 ° with 9 curtains
- Selection of the detection area : Curtain Adhesive Foils
- Mounting height : 1.8 to 3.0 m (6 to 10 ft)
- Power supply : 9 to 15 VDC
- Power consumption (nom.) : 4.4 mA
- Alarm relay (potential-free) : NC when energized
- Sabotagerelais (potential free) : NC when housing is closed
- External control inputs : Go
- Alarm memory : No
- PIR signal evaluation : V2E
- Dimensions (W x H x D) : 108 x 60 x 46 mm
- Environmental conditions : -10 to + 55 ° C (14 to 130 ° F); 95% relative humidity
- Tear-off contact : Optional
- EN50131-2-2 : Grade 2
- VdS recognition : G 109508
