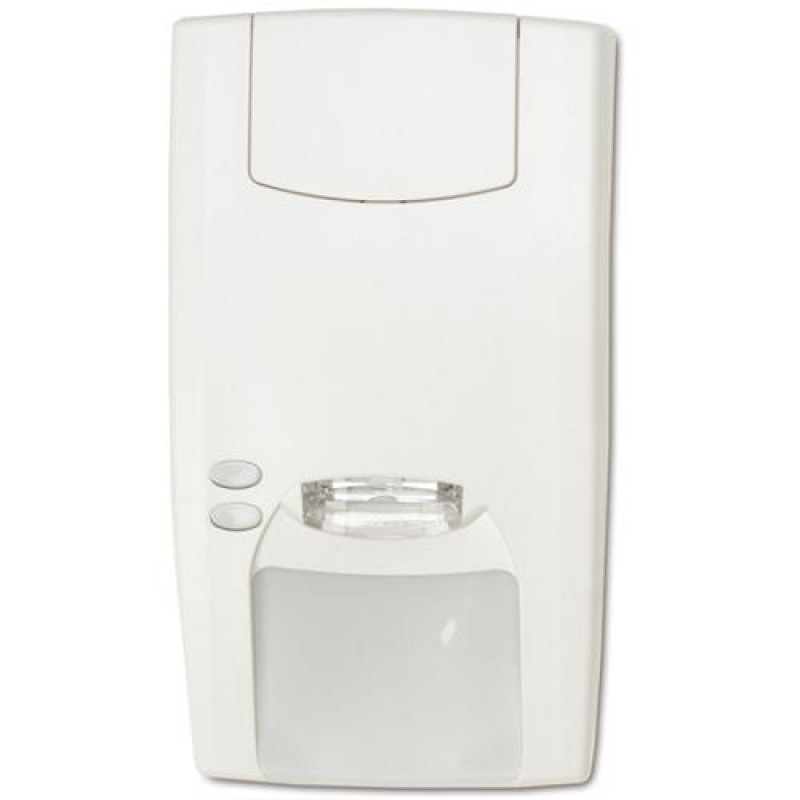

Aritech, VE1016AM-D, 16m PIR Wide Angle PIR/AM Motion Detector (9 Curtains)

Aritech, VE1016AM-D, 16m PIR Wide Angle PIR/AM Motion Detector (9 Curtains)

Motion sensors from GE have the most advanced mirror optics in the security industry. This unique optical mirror technology uses a combined step and gliding focussing mirror, which provides the sensor with a continuous detection curtain, which allows detection of an object without interruption. To increase the detection density, sensors of the 1100 series use a '' 3-Step Gliding Focus '' mirror optic, which generates 11 continuous detection probes, which detect infrared signals up to a distance of 16 m.

Key Features:

• Passive infrared motion detector
• Automatic notification of cover tests
• 3-Step Gliding Focus Curtain Mirror
• Plug-in electronics
• Sealed optics
• '' V2E '' Signal evaluation to avoid false alarms
• Detection by coat and umbrella
• Full creep protection
• Selectable detection range by mirror block
• Autofocus with constant range sensitivity
• No adjustment required for different mounting heights
• Improves angular deviations of walls
• EN50131-2-2 Grade 3 certified
• Different European approvals applied for
• VdS recognition: G110028

Technical Specification:

• Detection range : 16 m (50 ft)
• Anti-creep protection : Yes
• Sensitivity : Normal / High
• Coverage area : 86 ° with 9 curtains
• Selection of the detection area : Curtain Adhesive Foils
• Mounting height : 1.8 to 3.0 m (5.9 to 9.8 ft)
• Power supply : 9 to 15 VDC
• Power consumption (nom.) : 10 mA
• Alarm relay (potential-free) : NC when energized
• Sabotagerelais (potential free) : NC when housing is closed
• External control inputs : Go
• Alarm memory : Yes
• PIR signal evaluation : V2E
• Dimensions (W x H x D) : 108 x 60 x 46 mm (6.88 x 3.66 x 2.60 in.)
• Environmental conditions : -10 to + 55 ° C (14 to 130 ° F); 95% relative humidity
• Tear-off contact : On board
• EN50131-2-2 : Grade 3
• VdS recognition : Class C
