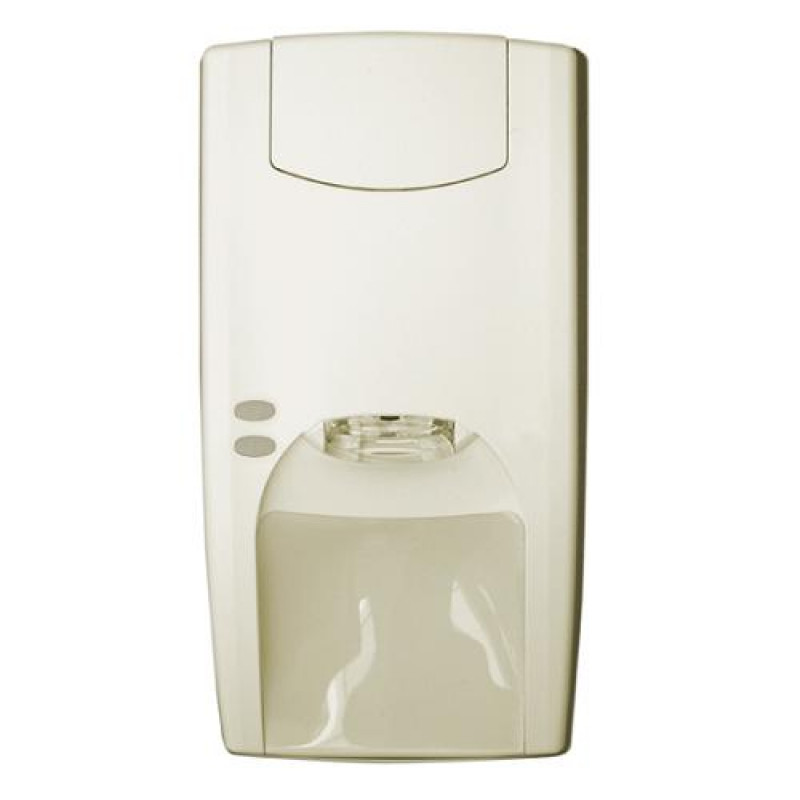

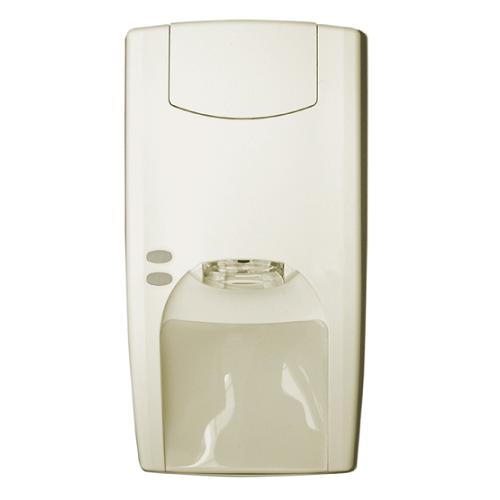

Aritech, VE1120AM-D, 20m PIR Wide Angle PIR/AM Motion Detector (11 Curtains)

Aritech, VE1120AM-D, 20m PIR Wide Angle PIR/AM Motion Detector (11 Curtains)

  • Brand:UTC (Aritech)
  • Product Code:VE1120AM-D
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Aritech, VE1120AM-D, 20m PIR Wide Angle PIR/AM Motion Detector (11 Curtains)

Motion sensors from GE have the most advanced mirror optics in the security industry. This unique optical mirror technology uses a combined step and gliding focussing mirror, which provides the sensor with a continuous detection curtain, which allows detection of an object without interruption. To increase the detection density, sensors of the 1100 series use a '' 3-step gliding focus '' mirror optic, which generates 11 continuous detection probes, which detect infrared signals up to a distance of 20 m.

Key Features:

  • Passive infrared motion detector
  • Automatic notification of cover tests
  • 3-Step Gliding Focus Curtain Mirror
  • Plug-in electronics
  • Sealed optics
  • '' V2E '' Signal evaluation to avoid false alarms
  • Detection by coat and umbrella
  • Full creep protection
  • Selectable detection range by mirror block
  • Autofocus with constant range sensitivity
  • No adjustment required for different mounting heights
  • Improves angular deviations of walls
  • EN50131-2-2 Grade 3 certified
  • Different European approvals applied for
  • VdS recognition: G110042

Technical Specification:

  • Detection range : 20 m (65 ft)
  • Anti-creep protection : Yes
  • Sensitivity : Normal / High
  • Coverage area : 86 ° with 11 curtains
  • Selection of the detection area : Curtain Adhesive Foils
  • Mounting height : 1.8 to 3.0 m ((6 to 10 ft)
  • Power supply : 9 to 15 VDC
  • Power consumption (nom.) : 11 mA
  • Alarm relay (potential-free) : NC when energized
  • Sabotagerelais (potential free) : NC when housing is closed
  • External control inputs : Go
  • Alarm memory : Yes
  • PIR signal evaluation : V2E
  • Dimensions (W x H x D) : 125 x 65 x 60 mm
  • Environmental conditions : -10 to + 55 ° C (14 to 130 ° F); 95% relative humidity
  • Tear-off contact : On board
  • EN50131-2-2 : Grade 3
  • VdS recognition : G 110042 class C
