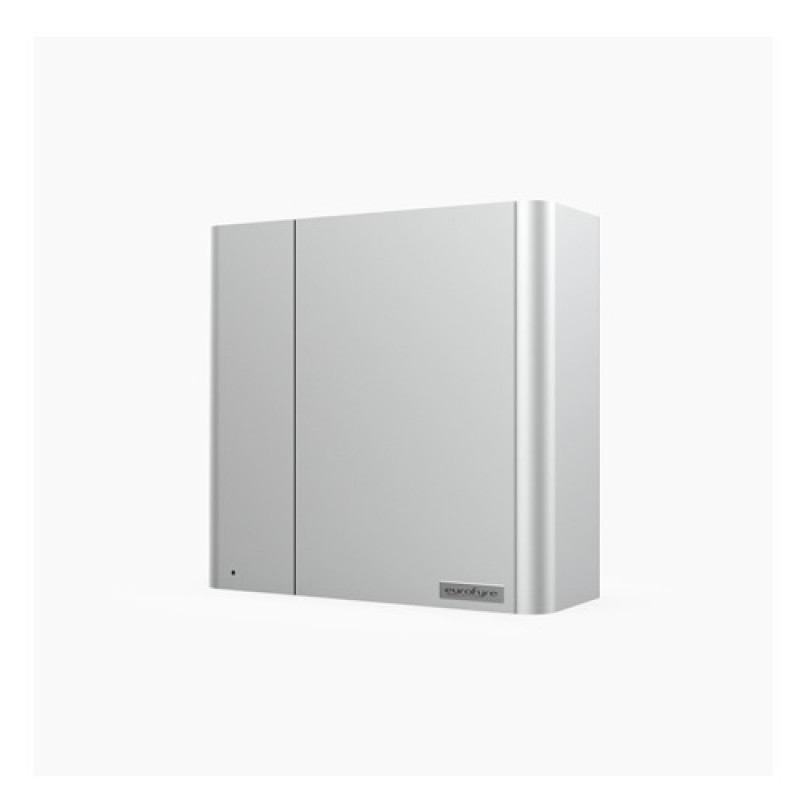

EF-INTHK-22, ESP Addressable 22-Way Interface
- Brand:Eurofyre
- Product Code:EF-INTHK-22
- Availability:Please Call or Email Us to Check Availability
EF-INTHK-22, ESP Addressable 22-Way Interface
Un-like traditional air sampling smoke detection units that only offer zonal indication, the VESDA-E VEA system is able to provide the user with up to 40 individual sampling point locations. To enable this unique feature requires input from the installer i.e. wiring and addressing of multiple loop powered interface units on-stie (up to 40 per VEA unit). This is were Eurofyre can assist!
Eurofyre offer unique history, knowledge and experience with microbore aspirating smoke detection. Eurofyre are responsible for over 400+ microbore systems sold and installed in applications such as high-end residential, retail , data centres, petrochemical and nuclear. We have a unique understanding of the challenges of assembling and wiring a multi-way interface on-site i.e. difficult access, multiple trades working in the same area, insufficient workspace and limited tool availability.
Key Features:
- Pre-wired OEM interface assembly
- Pre-addressed pipe relays as per client specification
- Supporting the major addressable fire alarm protocols
- Full functional and 24 hour soak test prior to delivery
- Easy installation reducing overall completion time
Specifications:
|
Relay Configurations |
22 relays supporting 20 pipes, 1 x common fault and 1 x common alarm signal |
|
Protocols Supported |
Eurofyre – ProFyre |
|
Supply Voltage |
18 to 30Vdc (24Vdc Nominal) |
|
Power Consumption @ 24VDC |
Average Quiescent: 20mA |
|
Dimensions (W x H x D) |
352.05mm x 340.5mm x 135.5mm (13.9 in x 13.4 in x 5.3 in) |
|
Operating Conditions |
Ambient: 0°C to 39°C (32°F to 102°F) |
|
IP Rating |
IP40 (not UL tested) |
|
Cable Access |
4 x 25 mm (1”) cable entries |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
