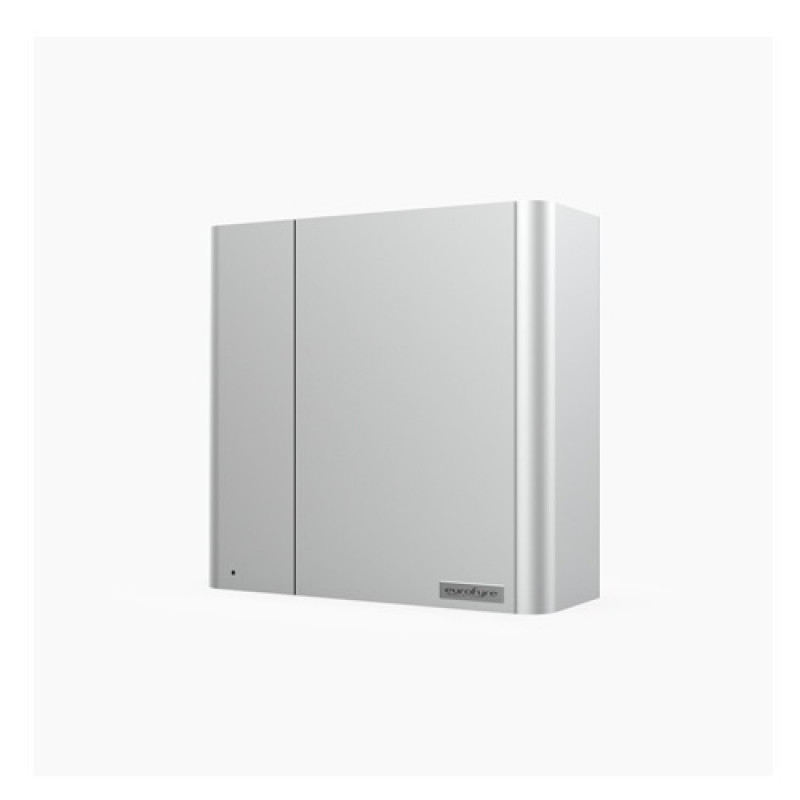

EF-INTPF-22, ProFyre Addressable 22-way Interface

EF-INTPF-22, ProFyre Addressable 22-way Interface

  • Brand:Eurofyre
  • Product Code:EF-INTPF-22
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


EF-INTPF-22, ProFyre Addressable 22-way Interface

Un-like traditional air sampling smoke detection units that only offer zonal indication, the VESDA-E VEA system is able to provide the user with up to 40 individual sampling point locations. To enable this unique feature requires input from the installer i.e. wiring and addressing of multiple loop powered interface units on-stie (up to 40 per VEA unit). This is were Eurofyre can assist!

Eurofyre offer unique history, knowledge and experience with microbore aspirating smoke detection. Eurofyre are responsible for over 400+ microbore systems sold and installed in applications such as high-end residential, retail , data centres, petrochemical and nuclear. We have a unique understanding of the challenges of assembling and wiring a multi-way interface on-site i.e. difficult access, multiple trades working in the same area, insufficient workspace and limited tool availability.

Key Features:

  • Pre-wired OEM interface assembly
  • Pre-addressed pipe relays as per client specification
  • Supporting the major addressable fire alarm protocols
  • Full functional and 24 hour soak test prior to delivery
  • Easy installation reducing overall completion time

Specifications:

Relay Configurations

17 relays supporting 15 pipes, 1 x common fault and 1 x common alarm signal
*20 relays supporting 18 pipes, 1 x common fault and 1 x common alarm signal (Gent and Notifier)
22 relays supporting 20 pipes, 1 x common fault and 1 x common alarm signal
32 relays supporting 30 pipes, 1 x common fault and 1 x common alarm signal
42 relays supporting 40 pipes, 1 x common fault and 1 x common alarm signal

Protocols Supported

Eurofyre – ProFyre
Zeta Alarms – MKII Addressable
Hochiki – ESP
Nittan – Evolution
*Gent – Vigilon
*Honeywell – Notifier

Supply Voltage

18 to 30Vdc (24Vdc Nominal)

Power Consumption @ 24VDC

Average Quiescent: 20mA
Average Alarm: 250mA

Dimensions (W x H x D)

352.05mm x 340.5mm x 135.5mm (13.9 in x 13.4 in x 5.3 in)

Operating Conditions

Ambient: 0°C to 39°C (32°F to 102°F)
Tested to: 0°C to 49°C (32°F to 120°F)*
Humidity: 10% to 95% RH, non-condensing

IP Rating

IP40 (not UL tested)

Cable Access

4 x 25 mm (1”) cable entries

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
