Videx, 8K-1/380/CL, 1 Way 8000 Series Flush Audio Kit with Code Lock

Videx, 8K-1/380/CL, 1 Way 8000 Series Flush Audio Kit with Code Lock

This 8000 series audio 1 button kit allows calls to be answered on a standard B.T. type telephone removing the need for a dedicated intercom telephone and allowing the user to answer both telephone line calls and door panel calls from the same phone.

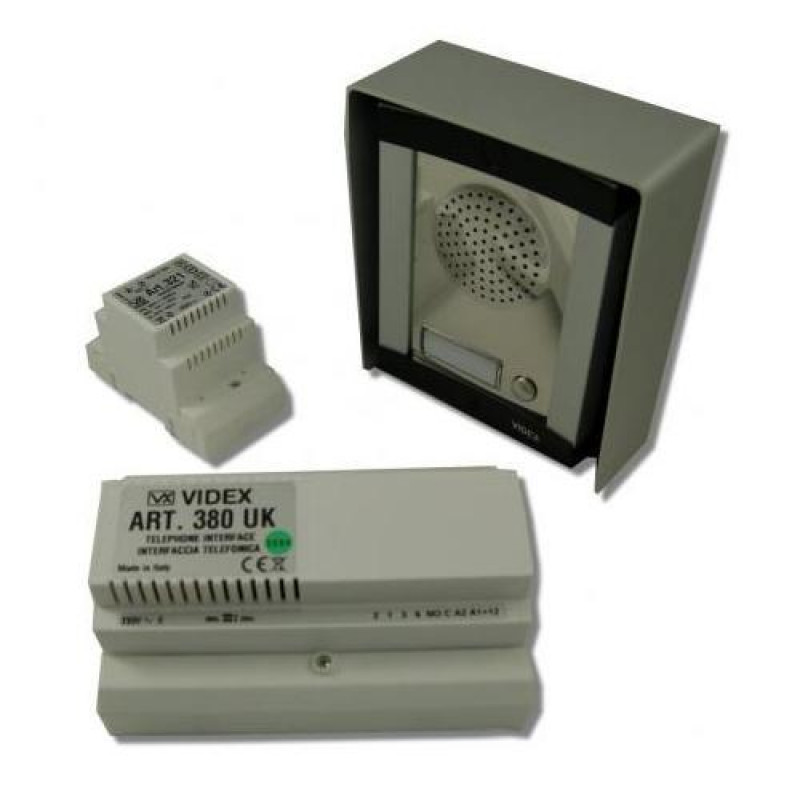

The kit includes an 8000 series surface or flush entrance panel with 1 call button and back lit name plate, the telephone interface which links the telephone line and the intercom entrance panel to the telephone and a PSU. Up to 3 telephones can be called from the entrance panel. The door/gate can be released using the telephone keypad. Additional features include the ability to divert an entrance panel call via the telephone line to any number programmed.

The telephone interface also includes an extensive programming menu allowing many features to be customised. A codelock can be added (/CL). The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output.

Specifications:

• Number of entrances - 1
• No. Of cores to telephone - 4
• Recommended cable type - CW1308
• Maximum No. Of telephones per call button - 3
• Lock output - 12Vac
• Telephone model - 3011 (call tone)
• PSU model - 321 (13Vac)
• Amplifier module - 8836M
