CQR (CABTP2X2/GY/100) Belden Type 8723 Grey 100m
Application
- Typically used for security and access control RS-232, RS485 data transfer.
Construction

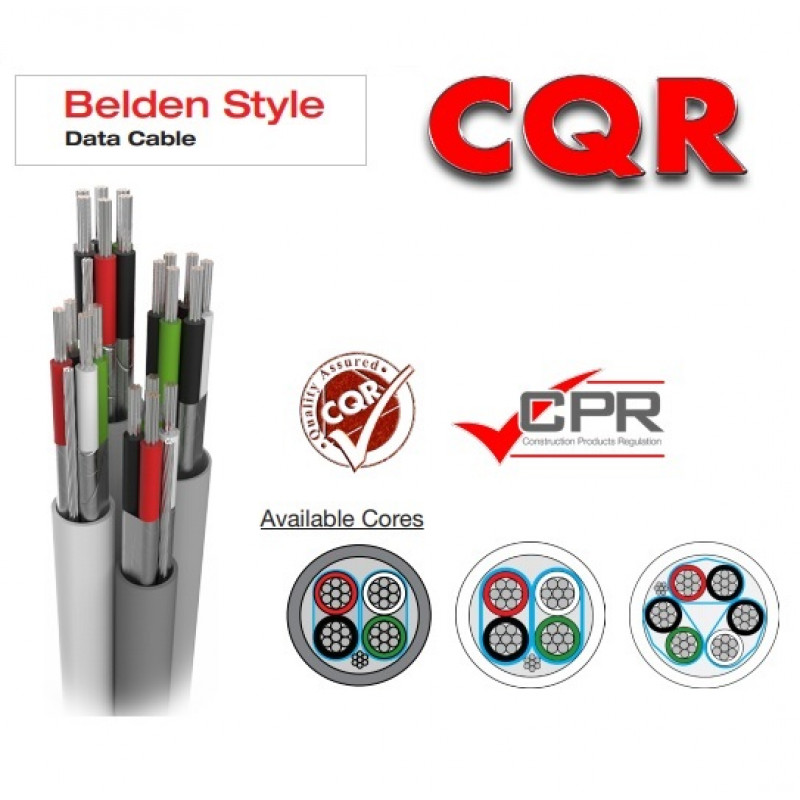

- 7×0.25mm2 Tinned Copper cable with screened pairs in a PE or a LSZH sheathing.
- Available in 2 x 2 pairs or 3 x 2 pairs.
- Coloured rip cord for identification of BS4737-3.30:2015 type 1
Approvals
- All CQR cables are certified and tested to EN50575:2014 – CPR 305/2011 and conform to BS4737-3.30:2015.
- Belden Style Data cable sheathed in PE is Type 2.
- Belden Style Data cable sheathed in LSZH is Type 1.
Meets Belden Style specifications 8723 and 8777.
Other cable lengths available on request.
Technical Specifications:
Core: |
0.75mm = 7 x 0.25mm2 |
AWG: |
22 |
Conductor Area: |
0.344mm2 22AWG |
Current: |
2 Amp |
Max Voltage: |
50V |
Operating Temp: |
70oC |
Screened |
Screening: |
CQRFOIL |
Drain Wire: |
Soft Tinned Copper |
Sheathing |
Standard |
Sheath – PVC |
Cored – LSZH |
Low Smoke Zero Halogen |
Sheath – LSZH |
Cores – LSZH |
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
