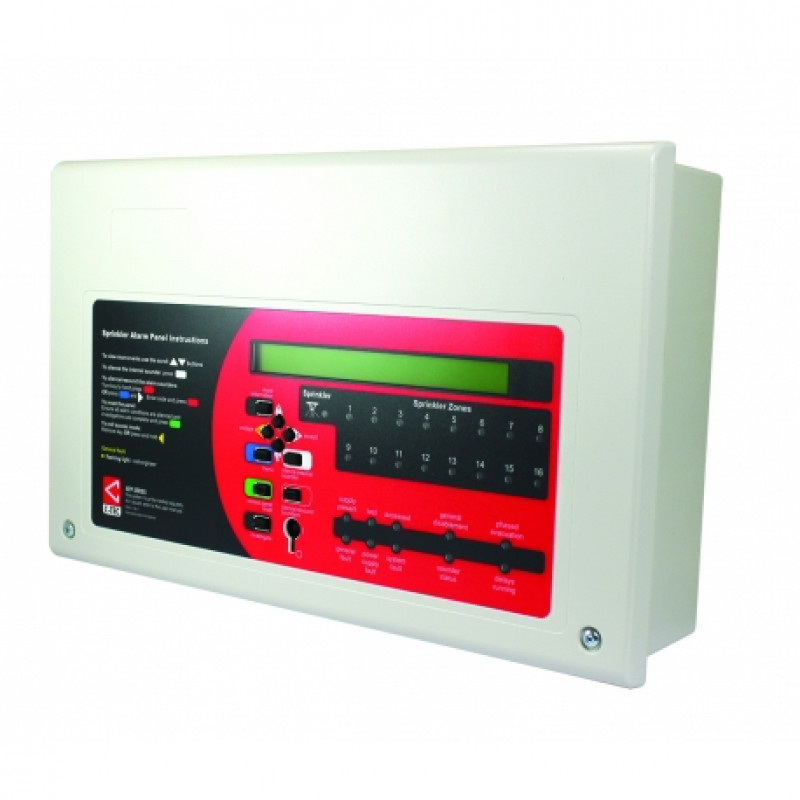

C-TEC, SAP501E/X, 1 Loop 16 Zone Sprinkler Alarm Panel
- Brand:C Tec
- Product Code:SAP501E/X
- Availability:Please Call or Email Us to Check Availability
C-TEC, SAP501E/X, 1 Loop 16 Zone Sprinkler Alarm Panel
1 loop 16 zone sprinkler alarm panel, XP95/Discovery protocol. Max. 2 x 3.2Ah Batteries. Can Monitor up to 126 Sprinkler Flow Switches.
Key Features:
- Ideal for monitoring up to 126 sprinkler flow switches.
- One switch monitoring unit required per monitored flow switch.
- Utilises the same technology as C-TEC's popular XFP addressable fire panel.
- Up to 16 sprinkler zone indicators available (assignable via the panel’s PC programming tools).
- Attractive flush or surface mountable plastic enclosure.
- Combined keypad or keyswitch entry.
Specification:
| Protocol/compatibility | Apollo XP95/Discovery. |
| Mains supply | 230V 50/60Hz. |
| Mains rated current | 350mA maximum. |
| Internal power supply | 27Vdc nominal. |
| Total output current limited to | 1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA). |
| Quiescent current | 50mA (loop unloaded). |
| Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. |
| No. of loop drivers | 1. |
| Max. loop output current | 500mA (25V min; 34V max). |
| Max. loop length | 1KM. |
| Max. addressable devices per loop | 126. |
| No. of conventional sounder circuits | 2 (Max. length per circuit is 500m). |
| EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold). |
| Max. sounder output current | 400mA. |
| Auxiliary relays | 3 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
| Other outputs | 24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA. |
| Auxiliary inputs | 2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching). |
| PC connection | PC connection via RS232 molex connector (supplied in XFP507 upload/download software kit); No printer connection available. |
| Indicators | 2 line x 40 character backlit display; 16 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; System Fault. |
| Connections | Fixed, largest acceptable conductor size 1mm2. |
| Expansion connections | 2-wire RS485 non-redundant network/repeater connection available via optional XFP761 network card. Max. 8 mains per network or 8 repeaters per non-networked main. Limit 1KM (main panel network) or 500M (repeater network). |
| Product dimensions (mm) | 380 W x 235 H x D 96mm; |
| Construction & finish | Plastic lid and base; RAL7035 textured. |
| IP Rating | IP30. |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
