C-TEC, XFP508X/SS, Apollo XP95/Discovery - Stainless Steel Hush Button

C-TEC, XFP508X/SS, Apollo XP95/Discovery - Stainless Steel Hush Button

  • Brand:C Tec
  • Product Code:XFP508X/SS
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

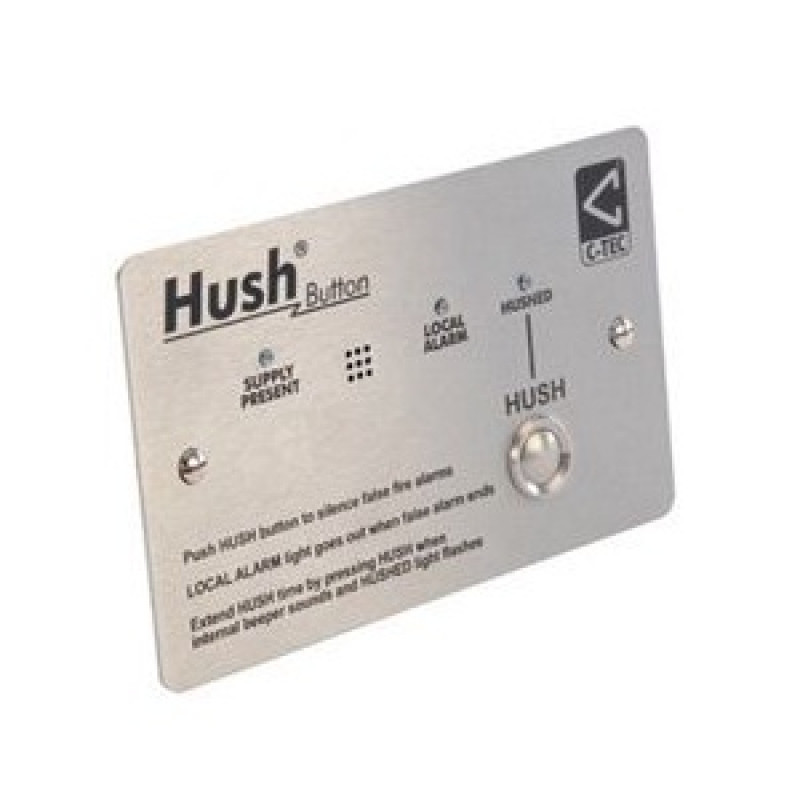

C-TEC, XFP508X/SS, Apollo XP95/Discovery - Stainless Steel Hush Button

C-TEC’s Hush Button fire alarm solution tackles all of these issues head on.

The C-Tec Hush Button is an award winning product designed for use in HMO buildings.  Each hush button is designed to be used within a dwelling within the HMO.  It is designed to have a circuit of conventional detectors connected to it from withing the dwelling.  The main aim of the hush button is to reduce false alarms through out the entire building as the hush button provides each dwelling with a 2 minute silence facility in the event of a false alarm.  The detectors are silenced simply by an occupant of the dwelling pressing the hush button on the front of the unit.

Key Features:

  • Upgrades the level of protection offered in a flat or apartment from Grade D to Grade A
  • Provides each individual dwelling with a two-minute silence facility and a 15-minute isolate facility to BS 5839 Part 6 clause 12.
  • Reduces the likelihood of unnecessary building evacuations, system vandalism and the possibility of a true alarm signal being ignored
  • Fully monitored for open and short circuit faults
  • Logging facilities at the main communal panel give full traceability of any problems
  • Can be operated by building occupants whilst standing at floor level
  • Utilises readily-available cost-effective technology
  • Compatible with the fire alarm industry’s leading analogue protocols - Hochiki’s ESP and Apollo’s XP95/Discovery

Specifications:

Max. no of hush buttons per analogue loop:
20* (note each Hush Button requires 2 addresses)
Onboard loop isolator:
Yes
Max. no. of conv. detectors per hush button:
10
Max. no. of manual call points per hush button:
10
Max. sounder circuit load per hush button:
30mA
Operating voltage:
17-40Vdc
Quiescent current:
5mA
Max. cable length of hush button detector circuit:
100m
Max. cable length of hush button sounder circuit:
100m
Line monitored for open and short circuit faults:
Yes
User indicators:
Supply present; local alarm and hushed LEDs

Buzzer sounds when hushed period due to expire
Engineer Indicators:
Open/short circuit fault (also shown at host panel)
Control buttons:
Hush
Dimensions (WxHxD) in mm:
144 x 84 x 37. Mounts on a 25mm deep back box

For more details, please refer with our attached datasheet.
