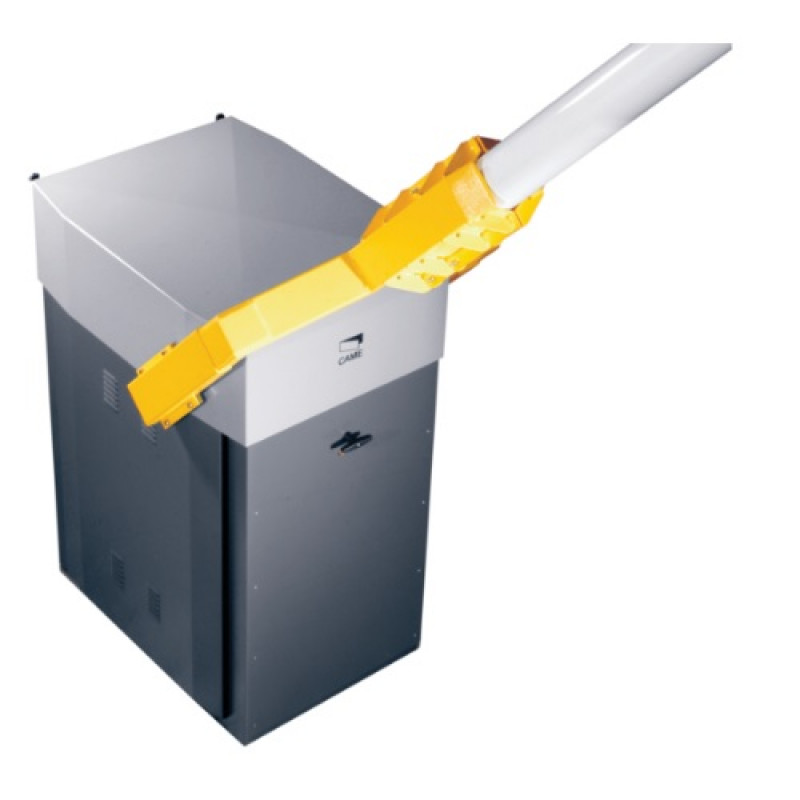

CAME (G12000K) 24 V DC Barrier with Gearmotors and On-board Control Panel

CAME (G12000K) 24 V DC Barrier with Gearmotors and On-board Control Panel

Barrier in galvanised and painted steel. Counterweights not supplied. Ideal solution for special or exceptional passages. Passage clearance up to 12m.

• Two gearmotors installed inside the cabinet and mounted on the same axis to provide greater motor torque.
• The boom has a smooth, safe and reliable movement thanks to a special modular counterweight spring balancing system, which depends on the boom length.
• A high-end range of command and safety accessories for a 100% complete installation.
• The 24 V DC choice is ideal for the intensive duty cycle.

Gard 12 is an automatic barrier that is really out of the ordinary

Automatic barrier that makes it possible to open and close a 12m opening in just 10 seconds, as often required in industrial installations.

Double motor, double duration
Solution with 2 gearmotors installed on the same axis that provide a truly remarkable torque.

Counterweight balancing
Adjustable by means of cast iron modules that can be added or removed depending on the length of the wand.

Counterweight balancing
For safe, reliable wand movement, even in the case of frequent use.

Integration and modularity
A special operator that blends in seamlessly with all Came control and safety accessories.

Control electronics
Located in a convenient positions for scheduled maintenance and protected against the elements.

The advantages of 24 V electronics
no more power failures. The electronics automatically detects any power failure and activates emergency operation by using backup batteries.
speed under control. According to requirements, the electronics is able to adjust the speed of manoeuvre.
intensive use. The low voltage gearmotor ensures ideal operation of the barrier in conditions of intensive use.
obstacle detection. A special electronic circuit constantly analyses regular operation, either stopping or reversing the movement when coming into contact with any obstacles.

Technical Specifications:

• Protection rating (IP): 54
• Power supply (V - 50/60 Hz): 230 AC
• Motor power supply (V): 24 DC
• Current draw (A): 15 Max.
• Power (W): 300
• Opening time at 90° (s): 10
• Duty cycle (%): 50
• Torque (Nm): 600
• Operating temperature (°C): -20 ÷ +55

For more details, please refer with our attached datasheet.
