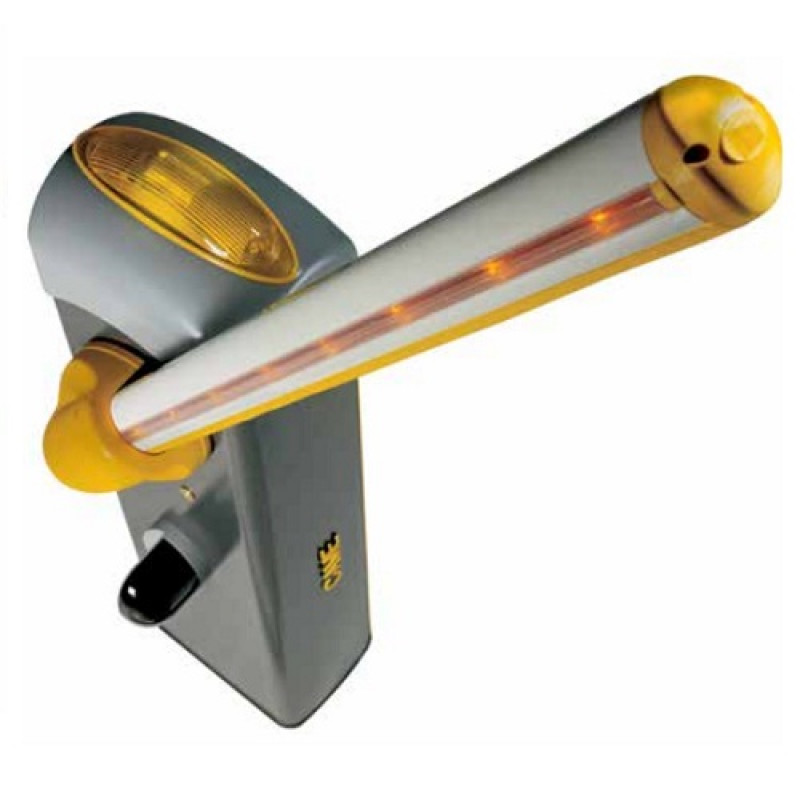

CAME (G3000DX) 24V Fast Barrier Unit Complete with PCB - DX Handed

CAME (G3000DX) 24V Fast Barrier Unit Complete with PCB - DX Handed

Right-hand barrier in galvanised and painted steel. Fitted to take accessories. The ideal solution for intensive vehicular traffic conditions. Passage clearance up to 2.75m.

• A modern style barrier, aesthetically perfect for any setting.
• The LED dome-shaped flashing light and the photocells can be integrated into the cabinet to ensure safety as well as durability.
• Protective cover, in the version with G03002 round boom, guarantees maximum safety when the boom is in motion.
• 24 V DC power supply is the ideal solution for ensuring intense duty cycle operation.
• Available with special accessories for detachable boom to use in applications where safety is a priority.

Gard 3: road barrier for fast entrances

Fast entrance management in public car parks, hospitals, highways.

• opening of the entrance gate in 0.9 seconds
• access control up to 2.75 meters wide
• reinforced steel construction with corrosion prevention treatment and electrostatic powder coating offers durability and maintenance over time of aesthetic features
• management of passive inertia typical of fast movements, even with intensive use
• modern design that can be easily integrated into different architectural contexts
• elliptic or round bar limits the sail effect

Strengths:

• pre-ready for accessory mounting directly onto the barrier
• high visibility LED flashing light built into the barrier dome
• reinforced cabinet with anti-rust treatment and painted steel or AISI 304 stainless steel
• dedicated control panel with encoder technology
• differentiated spring balancing system for opening and closing
• opening and closing motion speed with independent control
• intensive service guaranteed by the 24 V DC  gearmotor
• optional battery for operation in case of power failure

Dedicated control panel

Total control and optimization of the service.

• display to show the programming functions
• movement control and obstacle detection
• auto-diagnosis of safety devices connected to the system
• possibility of connection to a UPS or back-up unit to ensure operation in case of power failure

Technical Specifications:

• Protection rating (IP): 54
• Power supply (V - 50/60 Hz): 120 - 230 AC
• Motor power supply (V): 24 DC
• Current draw (A): 15 Max.
• Power (W): 300
• Opening time at 90° (s): 0.9
• Duty cycle (%): INTENSIVE SERVICE
• Torque (Nm): 200
• Operating temperature (°C): -20 ÷ +55

Note: Stainless Steel finish also available with DX/SX Handed.

For more details, please refer with our attached datasheet.
