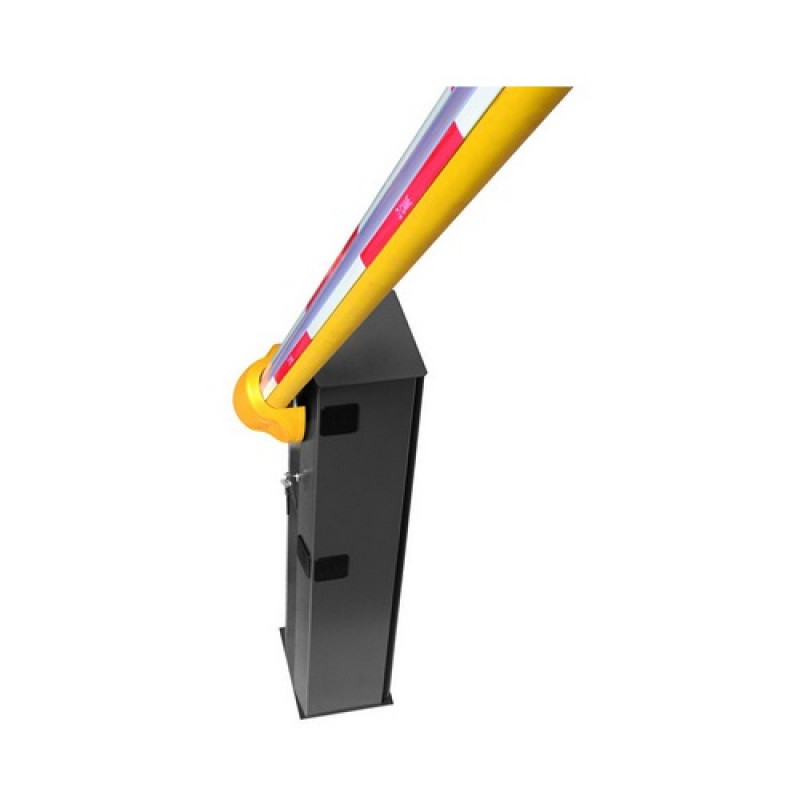

CAME (G3250) 24 V DC Barrier in Galvanised and Painted Steel - Up to 3.5m

CAME (G3250) 24 V DC Barrier in Galvanised and Painted Steel - Up to 3.5m

Barriers with 24 V DC gearmotor and on-board control panel. Barrier in galvanised and painted steel. Fitted to take accessories. A specific solution for intensive use in car parks. Passage clearance up to 3.5m.

• A modern style barrier, aesthetically perfect for any setting.
• Both the flashing light and the photocells can be installed directly onto the cabinet to guarantee safety and durability
• Protective cover guarantees maximum safety while the boom is in motion.
• 24 V DC power supply is the ideal solution for ensuring intense duty cycle operation.

Technical Specifications:

• Protection rating (IP): 54
• Power supply (V - 50/60 Hz): 230 AC
• Motor power supply (V): 24 DC
• Current draw (A): 15 Max.
• Power (W): 300
• Opening time at 90° (s): 2 ÷ 6
• Duty cycle (%): INTENSIVE SERVICE
• Torque (Nm): 200
• Operating temperature (°C): -20 ÷ +55

For more details, please refer with our attached datasheet.
